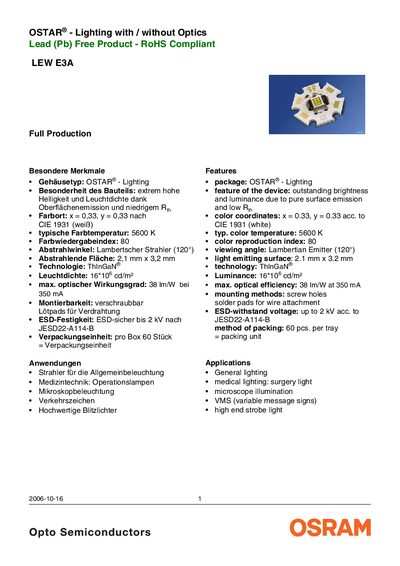

OSRAM LEW E3A Datasheet
The LEW E3A is a high‑brightness, thin‑GaN® LED module designed for general lighting, medical illumination, traffic signs, and high‑end strobe applications. It offers a typical color temperature of 5600 K, a color rendering index of 80, and a Lambertian viewing angle of 120°.
Key specifications include an operating temperature range of –40 °C to +100 °C, a junction temperature limit of 150 °C, forward voltage of 20.8 V at 700 mA, and an optical efficiency of up to 38 Im/W at 350 mA. The device is supplied in single‑brightness and single‑chromaticity groups, with 60 pieces per packing unit. This manual is written in German.
Osram E3A specifications
| Optical efficiency (typ.) | 38 Im/W at 350 mA |
|---|---|
| Light emitting surface | 2.1 mm × 3.2 mm |
| Color coordinates (x, y) | x = 0.33, y = 0.33 |
| Color rendering index | 80 |
| Typical forward voltage (700 mA) | 20.8 V |
Source: OSRAM LEW E3A Datasheet
