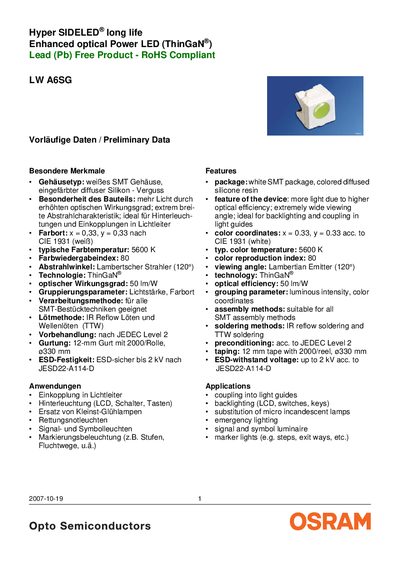

OSRAM LW A6SG Hyper SIDELED LED Datasheet
The LW A6SG Hyper SIDELED is a thin‑GaN LED with a white SMT package and a colored diffused silicone resin. It offers higher optical efficiency, an extremely wide viewing angle, and is suited for backlighting, light‑guide coupling, emergency lighting, and marker lights.
The datasheet lists key electrical parameters, maximum ratings, and ordering codes, along with recommended soldering methods, storage conditions, and brightness‑group packaging. Application examples and compliance statements (lead‑free, RoHS) are also included.
Osram A6SG specifications
| Typical color temperature | 5600 K |
|---|---|
| Color reproduction index | 80 |
| Viewing angle | Lambertian Emitter (120°) |
| Optical efficiency | 50 lm/W |
| Operating temperature range | -40 to +110 °C |
| Maximum junction temperature | +125 °C |
All Osram A6SG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which soldering methods are recommended for this LED?
IR reflow soldering and TTW (wave) soldering are suitable.
What are the recommended storage temperature limits?
The LED can be stored between –40 °C and +110 °C.
What wavelengths are available for the Hyper SIDELED?
The LED is offered in a blue version at 470 nm and a true‑green version at 528 nm.
What is the viewing angle of the LED?
It emits a Lambertian pattern with a 120° viewing angle.
