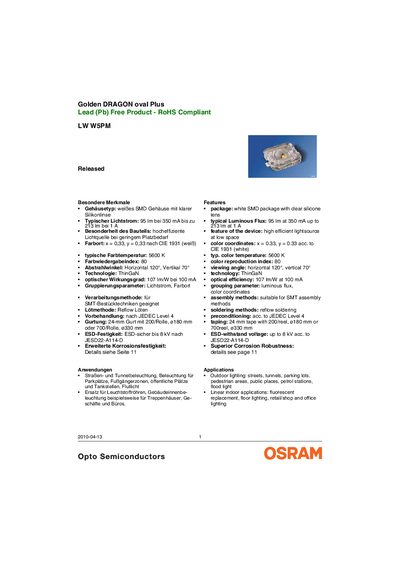

OSRAM LW W5PM LED Datasheet
The LW W5PM is a thin‑GaN LED offered in a white SMD package with a clear silicone lens. It provides high luminous flux (95 lm at 350 mA up to 213 lm at 1 A) and a colour temperature of 5600 K, with colour coordinates x = 0.33, y = 0.33.
The datasheet lists electrical characteristics such as forward voltage (typ. 3.2 V), forward current up to 1 A, ESD withstand up to 8 kV, and operating temperature range from –40 °C to 125 °C. Packaging details and brightness grouping are also included. This manual is written in German.
Osram W5PM specifications
| Typical Luminous Flux | 95 lm at 350 mA up to 213 lm at 1 A |
|---|---|
| Colour Coordinates | x = 0.33, y = 0.33 |
| Viewing Angle | Horizontal 120°, Vertical 70° |
| Technology | ThinGaN |
| Optical Efficiency | 107 lm/W at 100 mA |
| Forward Voltage (typ.) | 3.2 V |
| ESD Withstand Voltage | up to 8 kV |
Source: OSRAM LW W5PM LED Datasheet
All Osram W5PM documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical luminous flux of the LW W5PM LED?
It delivers 95 lm at 350 mA and up to 213 lm at 1 A.
How much ESD voltage can the component withstand?
It is ESD‑safe up to 8 kV according to JESD22‑A114‑D.
Is the LUW W5PM LED lead‑free and RoHS compliant?
Yes, the product is described as a lead‑free (Pb‑free) product that is RoHS compliant.
What are the typical luminous flux values for the LUW W5PM?
Typical luminous flux is 106 lm at 350 mA up to 249 lm at 1 A.
