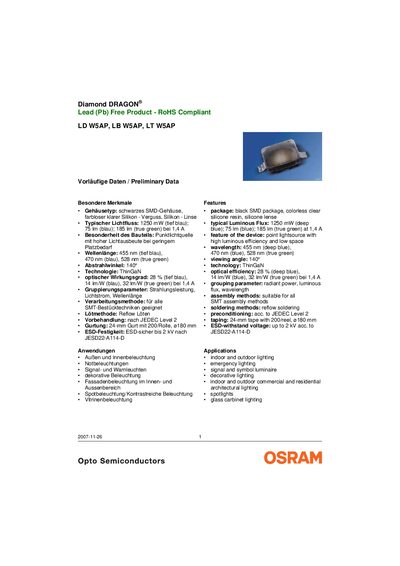

OSRAM Diamond DRAGON LD W5AP / LB W5AP / LT W5AP Datasheet
The Diamond DRAGON series from OSRAM Opto Semiconductors offers lead‑free, RoHS‑compliant LEDs in deep‑blue, blue, and true‑green colors. The devices use a black SMD package with a clear silicone lens and are based on ThinGaN technology.
Key specifications include typical luminous flux of 1250 mW (deep blue) at 1.4 A, wavelengths of 455 nm, 470 nm and 528 nm, a 140° viewing angle, and optical efficiencies up to 32 Im/W. The LEDs operate from –40 °C to +150 °C, tolerate up to 2 kV ESD, and are supplied in 24‑mm reels for standard SMT assembly. This manual is written in German.
Osram W5AP specifications
| Typical luminous flux | 1250 mW (deep blue); 75 Im (blue); 185 Im (true green) at 1.4 A |
|---|---|
| Peak wavelength | 455 nm (deep blue), 470 nm (blue), 528 nm (true green) |
| Viewing angle | 140° |
| Technology | ThinGaN |
| Optical efficiency | 28 % (deep blue), 14 Im/W (blue), 32 Im/W (true green) |
| ESD withstand voltage | up to 2 kV |
Source: OSRAM Diamond DRAGON LD W5AP / LB W5AP / LT W5AP Datasheet
