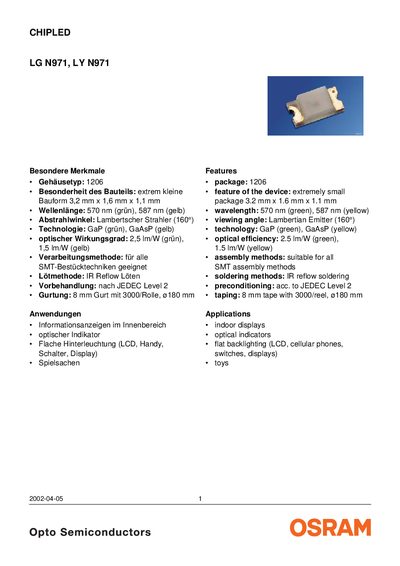

OSRAM LG N971 / LY N971 LED Chip Datasheet
The LG N971 (green) and LY N971 (yellow) are ultra‑small 1206 surface‑mount LED chips (3.2 mm × 1.6 mm × 1.1 mm) designed for indoor displays, optical indicators, flat backlighting of LCDs, cellular phones, switches, displays and toys. They emit at 570 nm (green) or 587 nm (yellow) with a Lambertian viewing angle of 160° and optical efficiencies of 2.5 Im/W and 1.5 Im/W respectively.
Key electrical characteristics include a forward voltage of 2.2 V (typ), reverse voltage of 5 V, forward current of 20 mA (typ), power consumption of 65 mW, and operation from –30 °C to +85 °C. The devices are supplied on 3000/reel tape, pre‑conditioned to JEDEC Level 2, and are intended for IR‑reflow soldering according to IPC‑9501. This manual is written in German.
Osram N971 specifications
| Package type | 1206 (3.2 mm × 1.6 mm × 1.1 mm) |
|---|---|
| Wavelength (green) | 570 nm |
| Viewing angle | 160° (Lambertian) |
| Optical efficiency (green) | 2.5 Im/W |
| Forward current (typ) | 20 mA |
| Power consumption | 65 mW |
| Maximum junction temperature | +95 °C |
| Operating temperature range | -30 °C to +85 °C |
| Storage temperature range | -40 °C to +85 °C |
| Tape format | 3000/reel, 2180 mm |
| Soldering method | IR Reflow |
All Osram N971 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the LEDs operate in?
They operate from –30 °C to +85 °C.
What typical applications are the LG N971 and LY N971 used for?
Typical applications include indoor displays, optical indicators, flat backlighting for LCDs, cellular phones, switches, displays, and toys.
What are the package dimensions of the LG N971 LED?
The package measures 3.2 mm × 1.6 mm × 1.1 mm.
Which soldering method is recommended for these LEDs?
IR reflow soldering is recommended.
