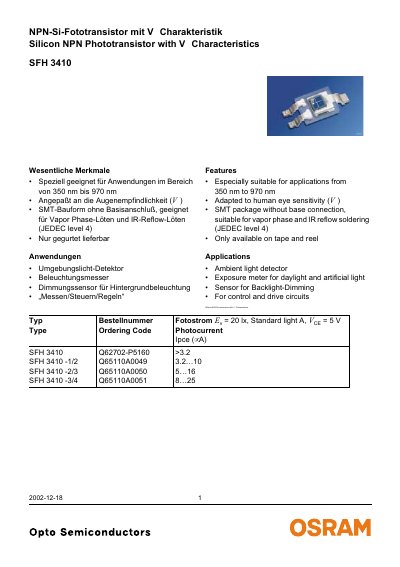

OSRAM SF3410NPN‑Si Phototransistor Datasheet
The SF3410NPN‑Si is a silicon NPN phototransistor optimized for the human eye sensitivity (Vλ) and suitable for wavelengths between 350 nm and 970 nm. It features an SMT package without a base lead, allowing vapor‑phase and IR reflow soldering (JEDEC level 4) and is supplied on tape‑and‑reel.
Typical applications include ambient‑light detection, exposure meters, backlight‑dimming sensors and other control‑and‑drive circuits. The datasheet lists maximum ratings, electrical characteristics, directional and spectral sensitivity curves, as well as mechanical dimensions and legal safety information. This manual is written in German.
Osram SFH 3410 specifications
| Spectral sensitivity range | 350 nm – 970 nm |
|---|---|
| Peak wavelength (λSmax) | 570 nm |
| Active area (A) | 0.29 mm² |
| Package size (L × W) | 0.75 mm × 0.75 mm |
| Collector‑emitter voltage (VCE max) | 5.5 V |
| Collector current (IC max) | 20 mA |
| Dark current (ICEO) at VCE=5 V | < 50 nA |
| Photocurrent (IPCE) at Ev=20 lx, VCE=5 V | > 3.2 µA |
| Capacitance (CCE) at VCE=0 V, f=1 MHz | 16 pF |
| Half‑angle (φ) | ± 60° |
