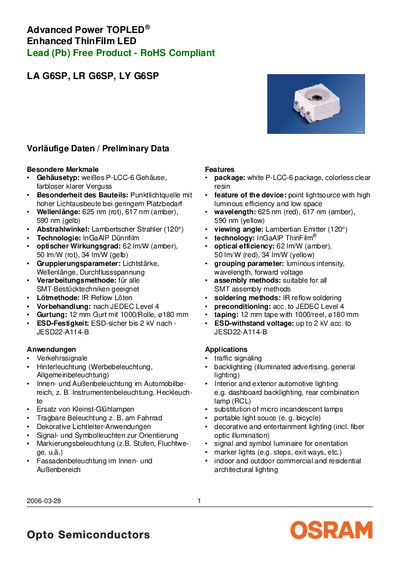

Osram LA G6SP / LR G6SP / LY G6SP LED Datasheet
This datasheet describes the Osram G6SP series of point‑source LEDs available in red (LR G6SP), amber (LA G6SP) and yellow (LY G6SP). It lists key optical parameters such as peak wavelength, luminous efficiency and viewing angle, as well as electrical characteristics like forward voltage and maximum forward current.
The document also contains ordering information, grouping rules for brightness, wavelength and forward‑voltage groups, maximum ratings, and safety notes for handling the components in life‑support devices. Application examples include traffic signaling, automotive interior lighting, portable bicycle lighting and decorative illumination. This manual is written in German.
Osram G6SP specifications
| Optical Efficiency | 10 lm/W (blue), 37 lm/W (true green) |
|---|---|
| Power Consumption | 1.075 W |
| Operating Temperature Range | -40 °C to +110 °C |
| Maximum Junction Temperature | >150 °C (short‑term) |
| Package Type | white P‑LCC‑6, colorless clear resin |
