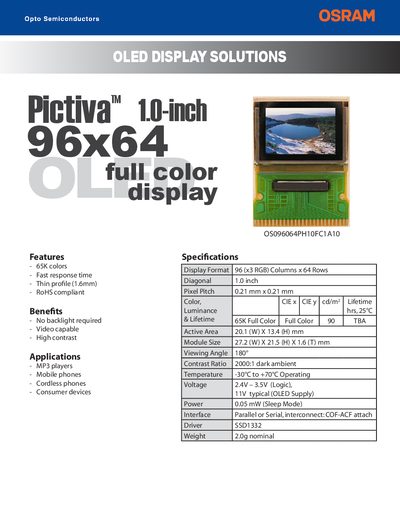

OSRAM Pictiva 1.0‑inch OLED Display Datasheet
The Pictiva™ 1.0‑inch OLED display from OSRAM Opto Semiconductors provides a full‑color 96 × 64 pixel matrix with 65 K colors, a thin 1.6 mm profile and no backlight, making it suitable for compact consumer devices such as MP3 players and mobile phones. It features fast response time, high contrast (2000:1) and operates over a wide temperature range.
Key specifications include a 1.0 inch diagonal, 0.21 mm pixel pitch, parallel or serial interface, low sleep‑mode power (0.05 mW), and operating voltages of 2.4‑3.5 V (logic) with a typical 11 V OLED supply. Mechanical dimensions are 27.2 mm × 21.5 mm × 1.6 mm and the module weighs about 2 g.
Osram Pictiva 1.0‑inch specifications
| Diagonal | 1.0 inch |
|---|---|
| Resolution | 96 × 64 (96 (x3 RGB) Columns x 64 Rows) |
| Pixel Pitch | 0.21 mm × 0.21 mm |
| Colors | 65 000 |
| Contrast Ratio | 2000:1 (dark ambient) |
| Operating Temperature | -30 °C to +70 °C |
| Operating Voltage (Logic) | 2.4 V – 3.5 V |
| OLED Supply Voltage (Typical) | 11 V |
| Sleep‑Mode Power | 0.05 mW |
| Interface | Parallel or Serial, COF‑ACF attach |
| Weight | 2.0 g (nominal) |
All Osram Pictiva 1.0‑inch documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the diagonal size of the Pictiva OLED display?
The display has a 1.0 inch diagonal.
How many colors can the Pictiva OLED module display?
It supports 65 000 colors.
What is the operating temperature range of the display?
It can operate from –30 °C up to +70 °C.
What is the viewing angle of the Pictiva display?
The display provides a 180° viewing angle.
