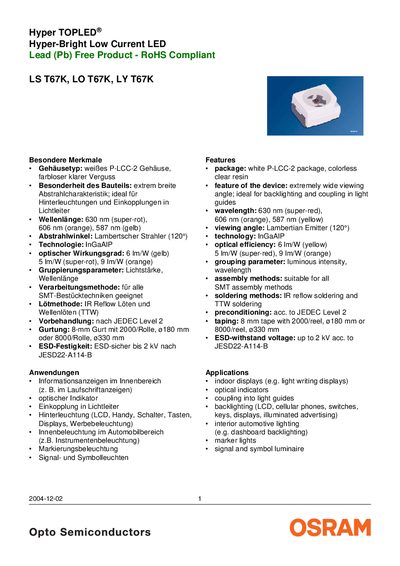

OSRAM LS T67K / LO T67K / LY T67K LED Datasheet
The OSRAM LS T67K, LO T67K and LY T67K series are hyper‑bright, low‑current LEDs offered in a white P‑LCC‑2 package with a colorless clear resin. They provide extremely wide viewing angles, making them ideal for backlighting, light‑guide coupling, and interior automotive lighting. Optical performance includes peak wavelengths of 630 nm (super‑red), 606 nm (orange) and 587 nm (yellow) with optical efficiencies up to 9 Im/W.
The datasheet lists detailed electrical ratings such as a forward current of 20 mA (typical at 25 °C), reverse voltage of 12 V, and an ESD withstand voltage of up to 2 kV. Environmental limits cover operating temperatures from –40 °C to +100 °C and a junction temperature limit of +125 °C. Ordering information, brightness groups, and wavelength groupings are also provided.
Osram T67K specifications
| Operating temperature range | -40 °C to +100 °C |
|---|---|
| Storage temperature range | -40 °C to +100 °C |
| Maximum junction temperature | +125 °C |
| Forward current (IF) | 20 mA (typical at 25 °C) |
| Optical efficiency (yellow) | 6 Im/W |
| Package type | white P‑LCC‑2 package, colorless clear resin |
| ESD withstand voltage | up to 2 kV |
All Osram T67K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the LS T67K series?
The LEDs operate from –40 °C up to +100 °C.
What is the maximum forward current rating?
The maximum forward current is 20 mA (typical at 25 °C).
What soldering methods are recommended for the LG T67K LED?
The LED can be assembled using IR reflow soldering and TTW (wave) soldering techniques.
What is the maximum forward current rating for these LEDs?
The maximum permissible forward current is 20 mA at 25 °C.
