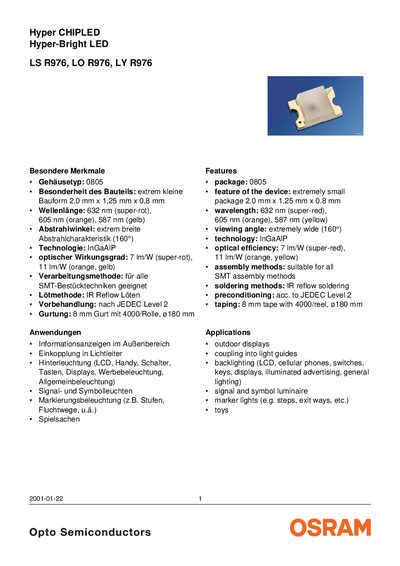

Opto Semiconductors LS R976 / LO R976 / LY R976 LED Datasheet
The LS R976, LO R976, and LY R976 are ultra‑small 0805 package LEDs (2.0 mm × 1.25 mm × 0.8 mm) offering super‑red, orange, and yellow emission wavelengths. They feature a very wide 160° viewing angle and high optical efficiency of up to 11 Im/W.
The components are designed for SMT assembly, support IR reflow soldering, and meet JEDEC Level 2 pre‑conditioning. They are suitable for outdoor displays, backlighting, signal and marker lighting, and toy applications, with operating temperatures from –30 °C to +85 °C and a junction temperature limit of +95 °C. This manual is written in German.
Osram R976 specifications
| Package type | 0805 |
|---|---|
| Package dimensions | 2.0 mm × 1.25 mm × 0.8 mm |
| Peak wavelength (super‑red) | 632 nm |
| Optical efficiency (super‑red) | 7 Im/W |
