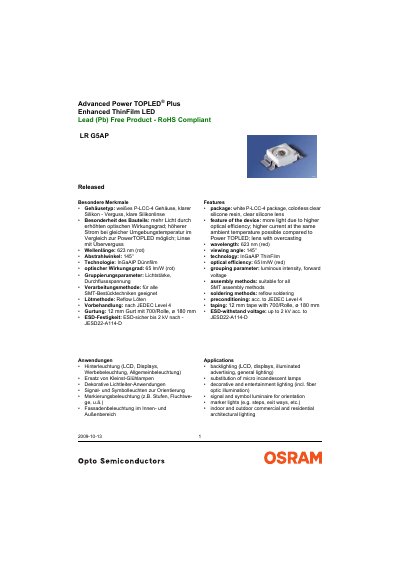

OSRAM LR G5AP LED Datasheet
Datasheet 16 pages · 526 KB · DE
The LR G5AP is an advanced power thin‑film LED with a peak wavelength of 623 nm (red) and a viewing angle of 145°. It uses a white P‑LCC‑4 package with a clear silicone lens and offers an optical efficiency of up to 65 lm/W.
The datasheet provides maximum ratings, forward‑voltage groups, brightness groups, moisture‑sensitive handling instructions, and packaging dimensions for tape‑and‑reel delivery. It also includes revision history and regulatory compliance notes (RoHS, JEDEC Level 4). This manual is written in German.
Osram G5AP specifications
| Optical efficiency | 65 lm/W (red) |
|---|---|
| Operating temperature range | -40 °C … +85 °C |
| Storage temperature range | -40 °C … +85 °C |
| Approximate weight | 50 mg |
| Tape dimensions | 12 mm tape, 700 reel, Ø 180 mm |
Source: OSRAM LR G5AP LED Datasheet
All Osram G5AP documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the viewing angle of these LEDs?
Both the LD G5AP and LT G5AP LEDs have a viewing angle of 145°.
What is the maximum forward current allowed for these LEDs?
The maximum forward current is 200 mA at 25 °C.
