Start here

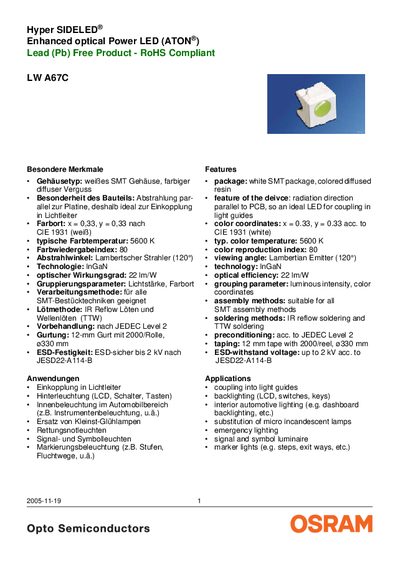

OSRAM LW A67C LED Datasheet
The LW A67C is a white SMT LED with a colored diffused resin package. It emits light parallel to the PCB, making it ideal for coupling into light guides, backlighting, interior automotive lighting, and emergency or signal applications.
The document provides ordering codes, maximum ratings, electrical characteristics, optical performance, and grouping information for brightness and chromaticity, along with handling, packaging, and revision history details. This manual is written in German.
Osram A67C specifications
| Typical color temperature | 5600 K |
|---|---|
| Color rendering index | 80 |
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 22 lm/W |
| Forward voltage (typ.) | 3.6 V |
| Power consumption (typ.) | 85 mW |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature max | +110 °C |
| ESD withstand voltage | up to 2 kV |
Source: OSRAM LW A67C LED Datasheet
All Osram A67C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended soldering method for the LW A67C LED?
The LED can be assembled using IR reflow soldering or TTW (wave) soldering.
What is the typical forward voltage of the LW A67C LED?
The typical forward voltage is 3.6 V.
What are the operating temperature limits of the LB A67C / LT A67C LEDs?
The LEDs operate from –40 °C up to +100 °C.
From: OSRAM LB A67C / LT A67C Enhanced Optical Power LED Datasheet
Are the LEDs RoHS compliant?
Yes, they are lead‑free and RoHS compliant.
From: OSRAM LB A67C / LT A67C Enhanced Optical Power LED Datasheet
