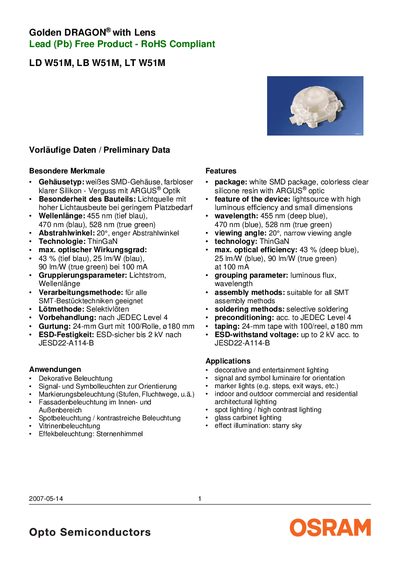

OSRAM W51M Series LED Datasheet
The OSRAM W51M series includes three LED variants (LD, LB, LT) featuring ThinGaN technology, narrow 20° viewing angle and high optical efficiency (up to 43% with lens). The components are supplied in white SMD packages with clear silicone resin and are RoHS‑compliant.
The datasheet provides detailed electrical characteristics, maximum ratings, wavelength groups, brightness group tables and recommended assembly methods, along with typical applications such as decorative lighting, signage, façade illumination and effect lighting. This manual is written in German.
Osram W51M specifications
| Wavelength (deep blue) | 455 nm |
|---|---|
| Viewing angle | 20° (narrow) |
| Maximum optical efficiency (with lens) | 43 % (deep blue) |
| Forward voltage (typical) | 3.2 V |
| Forward current (max) | 400 mA |
| ESD withstand voltage | 2 kV |
Source: OSRAM W51M Series LED Datasheet
All Osram W51M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What wavelengths are available for the W51M LED series?
The series offers deep blue at 455 nm, blue at 470 nm, and true green at 528 nm.
What is the maximum forward current for these LEDs?
The maximum forward current is 400 mA (at 25 °C).
What is the maximum forward current for the W51M series?
The maximum forward current is 400 mA.
What are the typical optical efficiencies at 100 mA?
At 100 mA the optical efficiency is 60 Im/W for red, 74 Im/W for amber, and 61 Im/W for yellow.
