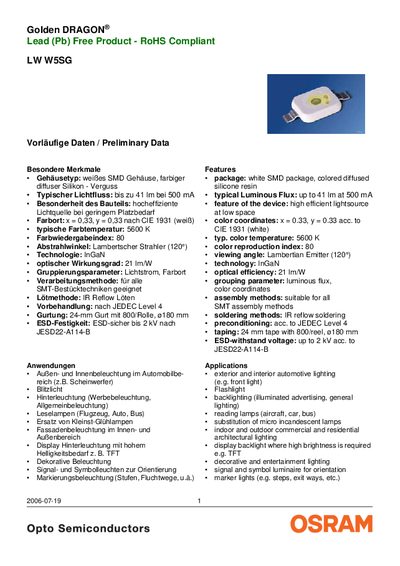

OSRAM LW W5SG LED Datasheet
The LW W5SG is a white SMD LED with a colored diffused silicone resin package, offering high efficiency in a compact footprint. It is designed for a wide range of applications such as automotive interior and exterior lighting, flashlights, backlighting, decorative lighting, and signal or marker lights.
The datasheet details key parameters including luminous flux, color coordinates, optical efficiency, temperature ranges, and electrical ratings, as well as ordering codes and brightness grouping information for proper selection and integration. This manual is written in German.
Osram W5SG specifications
| Typical luminous flux | up to 41 lm at 500 mA |
|---|---|
| Color coordinates (x, y) | x = 0.33, y = 0.33 |
| Optical efficiency | 21 lm/W |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature (max) | 125 °C |
| Power consumption (25 °C) | 2.3 W |
Source: OSRAM LW W5SG LED Datasheet
All Osram W5SG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical luminous flux of the LW W5SG LED?
It delivers up to 41 lm at a forward current of 500 mA.
What applications is the LW W5SG LED suitable for?
It is used for exterior and interior automotive lighting, flashlights, backlighting, decorative lighting, and signal or marker lights.
What is the typical luminous flux of the W5SG LED at 500 mA?
The LED delivers up to 11 lm in blue, 35 lm in verde, and 50 lm in true‑green at a forward current of 500 mA.
What is the operating temperature range for the W5SG LED?
The device can operate from –40 °C up to +100 °C.
What are the operating temperature limits for the W5SG LED?
The device can operate from –40 °C up to +100 °C.
Which assembly method is recommended for the W5SG LED?
The LED is suitable for all SMT assembly methods, including IR reflow soldering.
