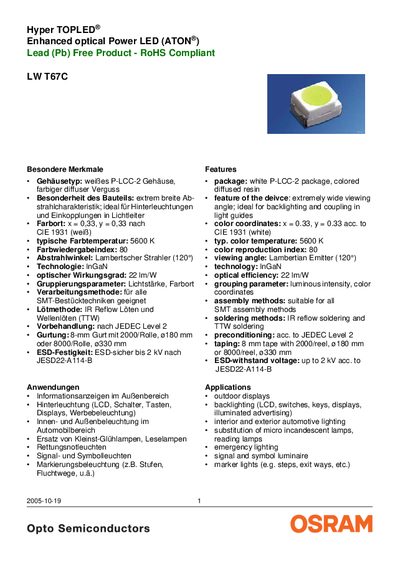

OSRAM LW T67C LED Datasheet
The LW T67C is an enhanced optical power LED (ATON®) built in a white P‑LCC‑2 package with a colored diffused resin. It offers an extremely wide viewing angle, ideal for backlighting and light‑guide coupling, and delivers an optical efficiency of 22 lm/W. The device is lead‑free and RoHS‑compliant, using InGaN technology.
Typical applications include outdoor displays, LCD backlighting, automotive interior and exterior lighting, emergency and signal lighting, and marker lights for steps or exit ways. Ordering information specifies brightness and chromaticity groups, with each reel containing only one group to ensure consistency. This manual is written in German.
Osram T67C specifications
| Optical efficiency | 22 lm/W |
|---|---|
| Color rendering index | 80 |
| Viewing angle | 120° Lambertian |
| Forward current (25 °C) | 20 mA |
| Junction temperature | +110 °C |
| Operating temperature range | -40 °C to +100 °C |
Source: OSRAM LW T67C LED Datasheet
All Osram T67C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the LW T67C LED RoHS compliant?
Yes, the LW T67C is a lead‑free product and RoHS compliant.
What is the typical viewing angle of the LW T67C?
The LED has a Lambertian viewing angle of 120 degrees.
