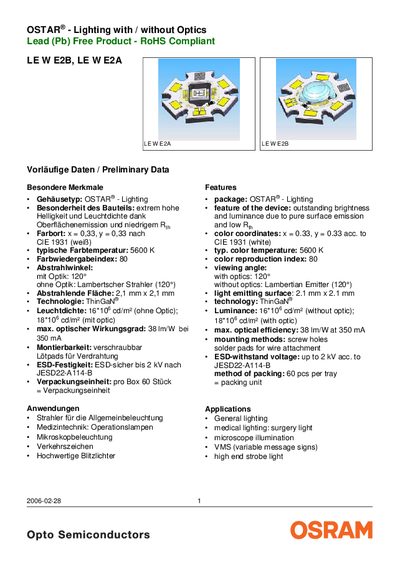

OSRAM LE W E2B/E2A LED Datasheet
The LE W E2B and LE W E2A are thin‑GaN LEDs offering exceptionally high luminance thanks to surface emission and low resistance. They provide a typical color temperature of 5600 K, a color rendering index of 80 and a viewing angle of 120° with optics (Lambertian 120° without optics). The light‑emitting area measures 2.1 mm × 2.1 mm and the devices are supplied in lead‑free, RoHS‑compliant packaging.
These components are intended for general lighting, medical illumination (surgery lamps, microscopes), traffic signs and high‑end strobe applications. They operate from –40 °C to +85 °C, can withstand up to 2 kV ESD, and feature a maximum optical efficiency of 38 lm/W at 350 mA. This manual is written in German.
Osram E2A specifications
| Color coordinates (x, y) | x = 0.33, y = 0.33 |
|---|---|
| Typical color temperature | 5600 K |
| Color rendering index | 80 |
| Viewing angle (with optics) | 120° |
| Viewing angle (without optics) | Lambertian 120° |
| Light‑emitting surface | 2.1 mm × 2.1 mm |
| Technology | ThinGaN® |
| Maximum optical efficiency | 38 lm/W at 350 mA |
| Thermal resistance (Rth) | 5.0 K/W |
| Power consumption per module | 18 W |
| ESD withstand voltage | 2 kV |
Source: OSRAM LE W E2B/E2A LED Datasheet
All Osram E2A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical viewing angle of the LE W E2B/E2A LEDs?
The LEDs have a 120° viewing angle with optics and a Lambertian 120° pattern without optics.
Are the LEDs RoHS compliant?
Yes, the devices are lead‑free and meet RoHS compliance.
How many modules are packed in each box?
Each packaging unit contains 60 pieces.
From: OSRAM LE CW E2AOSTAR Lighting without Optics Lead-Free RoHS Compliant Datasheet
What ESD voltage can the device withstand?
The device is ESD‑safe up to 2 kV according to JESD22‑A114‑D.
From: OSRAM LE CW E2AOSTAR Lighting without Optics Lead-Free RoHS Compliant Datasheet
What temperature range can the LED operate in?
It can operate from –40 °C up to +100 °C.
What is the typical optical efficiency at 350 mA?
The typical optical efficiency is 38 lm/W at 350 mA.
