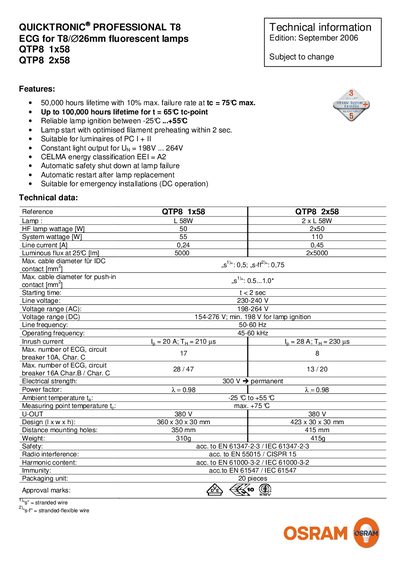

Osram QTP8 QUICKTRONIC Professional T8 Handbook
The QUICKTRONIC® Professional T8 ECG is designed for T8/@26 mm fluorescent lamps, offering reliable ignition and constant light output across a wide voltage range. It is suitable for both standard luminaires and emergency installations with DC operation.
Key technical data include a lifetime of up to 100,000 hours, a power factor of 0.98, and compliance with EN/IEC safety and electromagnetic compatibility standards. The device operates at 230‑240 V line voltage, 45‑60 kHz frequency, and supports cable lengths up to 3 m depending on the wiring configuration.
Osram QTP8 specifications
| Lifetime | 100,000 hours |
|---|---|
| Voltage range (AC) | 198‑264 V AC |
| Line voltage | 230‑240 V |
| Operating frequency | 45‑60 kHz |
| Inrush current | 20 A |
| Power factor | 0.98 |
| Ambient temperature range | -25 °C to +55 °C |
| Weight | 310 g |
All Osram QTP8 documents by type
Questions answered in these manuals
What is the maximum cable length between the ECG and lamp for the QTP8 1x58 version?
The maximum cable length is 2.0 m for pins 21 and 22, and 1.5 m for pins 26 and 27.
Which safety and EMC standards does the QUICKTRONIC Professional T8 comply with?
It complies with EN 61347‑2‑3 / IEC 61347‑2‑3, EN 55015 / CISPR 15, EN 61000‑3‑2 / IEC 61000‑3‑2, and EN 61547 / IEC 61547.
What is the lifetime of the QTP8 ECG?
The QTP8 ECG is rated for up to 100,000 hours of operation.
What AC voltage range does the QTP8 support?
It operates on an AC voltage range of 198 V to 264 V.
