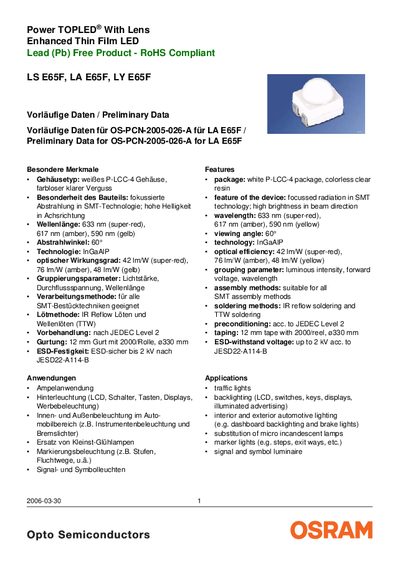

OSRAM LS E65F / LA E65F / LY E65F LED Datasheet
This datasheet provides detailed specifications for the OSRAM LS E65F, LA E65F and LY E65F surface‑mount LEDs. It includes optical data such as wavelength, viewing angle and optical efficiency, as well as electrical parameters like forward voltage, forward current and power consumption.
The document also lists ordering codes, brightness and wavelength groupings, maximum ratings, and revision history. It is intended for designers and procurement engineers selecting LEDs for traffic lights, automotive lighting, backlighting, and other illumination applications. This manual is written in German.
Osram E65F specifications
| Wavelength (super‑red) | 633 nm |
|---|---|
| Viewing angle | 60° |
| Optical efficiency (super‑red) | 42 Im/W |
| Maximum forward current | 70 mA |
| Maximum power consumption | 190 mW |
| Operating temperature range | -40 °C … +100 °C |
| Storage temperature range | -40 °C … +100 °C |
All Osram E65F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the viewing angle of the LS E65F LED?
The viewing angle is 60°.
What is the maximum forward current rating?
The maximum forward current is 70 mA.
What colour variants are available for the OSRAM LS E65F LED series?
The series is offered in three colours: super‑red (LS E65F), amber (LA E65F) and yellow (LY E65F).
What is the typical forward voltage for the super‑red LS E65F LED?
The typical forward voltage for the super‑red variant is 1.90 V.
