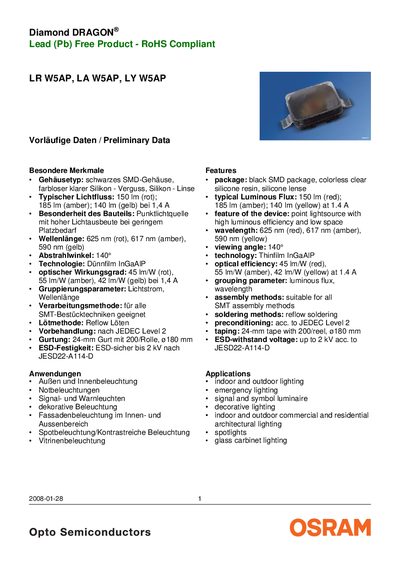

This document describes the features and characteristics of LR W5AP, LA W5AP, LY W5AP Diamond DRAGON® Lead (Pb) Free Product - RoHS Compliant, including luminous flux, wavelength, viewing angle, technology, and optical efficiency.
The OSRAM W5AP series comprises point‑source LEDs in black SMD packages with clear silicone resin and lens. Available in red, amber and yellow, the devices deliver high luminous efficiency with typical fluxes of 150 lm (red), 185 lm (amber) and 140 lm (yellow) at 1.4 A.
Key features include a 140° viewing angle, thin‑film InGaAlP technology, and RoHS‑compliant, lead‑free construction. The datasheet provides ordering information, maximum ratings, and characteristic curves for design engineers.
| Typical Luminous Flux (red) | 150 lm at 1.4 A |
|---|---|
| Viewing Angle | 140° |
| Operating Temperature Range | -40 °C to +150 °C |
| Storage Temperature Range | -40 °C to +150 °C |
| Junction Temperature (max) | 160 °C |
| ESD Withstand Voltage | 2 kV (JESD22‑A114‑D) |
The red W5AP LED provides a typical luminous flux of 150 lm when driven at 1.4 A.
The LEDs operate from –40 °C up to +150 °C.
They are rated to withstand up to 2 kV according to JESD22‑A114‑D.
