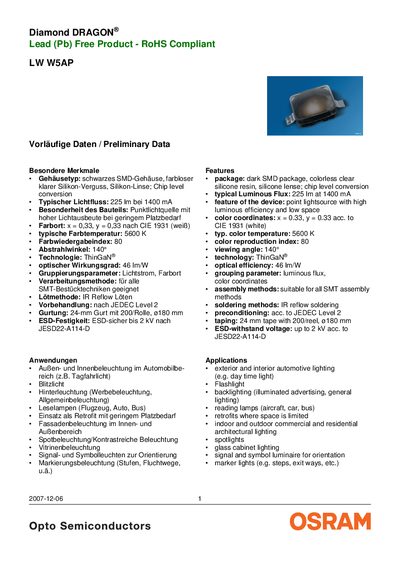

The document describes the features and characteristics of the LW W5AP Diamond DRAGON® Lead (Pb) Free product, including its black SMD package, lead-free material, RoHS compliance, high luminous efficacy, and small form factor. The product is suitable for various applications such as automotive lighting, flashlights, backlighting, reading lamps, assembly, and general lighting.
The LW W5AP is a lead‑free, RoHS‑compliant ThinGaN® LED designed for automotive, interior, and architectural lighting applications. It offers a point‑light source with high luminous efficiency and a compact SMD package.
Key specifications include a typical luminous flux of 225 lm at 1400 mA, optical efficiency of 46 lm/W, and a 140° viewing angle. The datasheet also lists maximum ratings, temperature ranges, ESD protection, and ordering details for various brightness and chromaticity groups.
| Typical luminous flux | 225 lm at 1400 mA |
|---|---|
| Optical efficiency | 46 lm/W |
| Viewing angle | 140° |
| Maximum forward current | 2.0 A (at 25 °C) |
| Operating temperature range | -40 °C to +150 °C |
| Storage temperature range | -40 °C to +150 °C |
| ESD withstand voltage | up to 2 kV |
| Soldering method | IR reflow soldering |
The LW W5AP delivers a typical luminous flux of 225 lm when driven at 1400 mA.
It can operate from –40 °C up to +150 °C.
Yes, it is a lead‑free product that complies with RoHS regulations.
IR reflow soldering is the recommended method.
