The product is a LED emitter of OSTAR® - Lighting series, which has 4200K, 3500K, 3000K, 2700K four color temperatures, and has extremely high brightness and luminous efficiency. It can be used in lighting, photography, television and other fields.

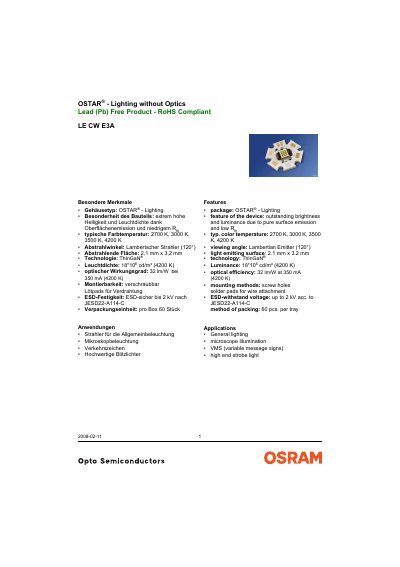

The LE CW E3AOSTAR is a lead‑free LED module designed for general lighting, microscope illumination, traffic signs and high‑end strobe applications. It uses ThInGaN® technology to achieve high brightness, a 120° Lambertian viewing angle and an optical efficiency of up to 32 lm/W at 350 mA.
The document provides maximum ratings, electrical and optical characteristics, chromaticity groups, packaging details and safety information. It also includes revision history and handling instructions for the component. This manual is written in German.
| Maximum forward current per chip | 1000 mA |
|---|---|
| Reverse voltage | Not designed for reverse operation |
| Power consumption per module | 27 W |
| Optical efficiency | 32 lm/W at 350 mA (4200 K) |
| Radiating surface | 2.1 mm × 3.2 mm |
| Luminance | 18 × 10⁶ cd/m² (4200 K) |
| Viewing angle | 120° (Lambertian) |
| Packaging unit | 60 pcs per tray |
It reaches an optical efficiency of 32 lm/W at 350 mA for the 4200 K version.
Each packaging unit contains 60 pieces of the LED module.
The LED emits a Lambertian pattern with a 120° viewing angle.
