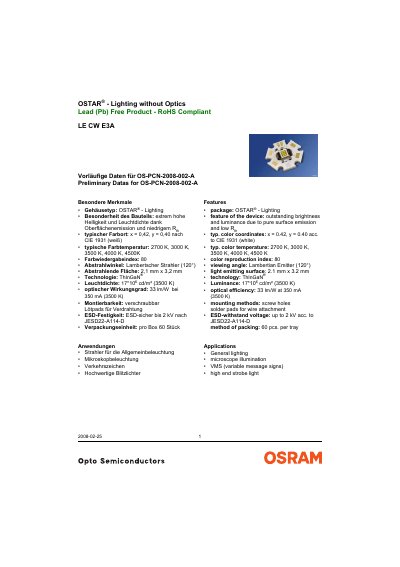

The document describes the features and characteristics of LE CW E3A OSTAR® - Lighting without Optics Lead (Pb) Free Product - RoHS Compliant. This product achieves outstanding brightness and luminance through pure surface emission and low thermal resistance technology. The typical color coordinates are x = 0.42, y = 0.40 according to CIE 1931 (white), with color temperatures available in 2700 K, 3000 K, 3500 K, 4000 K, and 4500 K. The color reproduction index is 80 and the viewing angle is Lambertian Emitter (120°). The product is suitable for general lighting, microscope illumination, traffic signs, and high-quality flashlights.
The LE CW E3A OSTAR is a surface‑emitting LED module with very high brightness and luminance. It is offered in several colour‑temperature options (2700 K‑4500 K) and packaged in screw‑mountable trays of 60 units.
The document provides electrical limits, thermal characteristics, optical performance and ordering information, as well as safety notes for life‑support applications. All values are given for a test current of 700 mA unless otherwise noted. This manual is written in German.
| Operating temperature range | -40 °C … +100 °C |
|---|---|
| Junction temperature (max) | 150 °C |
| Maximum forward current per chip | 1000 mA |
| Typical forward current used for specs | 700 mA |
| Reverse voltage | Not designed for reverse operation |
| Power consumption per module | 27 W |
| Luminance (typical) | 1.7 × 10⁶ cd/m² |
| Optical efficiency (typical) | 33 lm/W at 350 mA, 3500 K |
| Packaging quantity | 60 pieces per tray |
The maximum forward current per chip is 1000 mA.
Typical optical efficiency is 33 lm/W at 350 mA and a colour temperature of 3500 K.
The module is offered in 2700 K, 3000 K, 3500 K, 4000 K and 4500 K.
Each packing unit contains 60 LEDs arranged in a tray.
