Start here

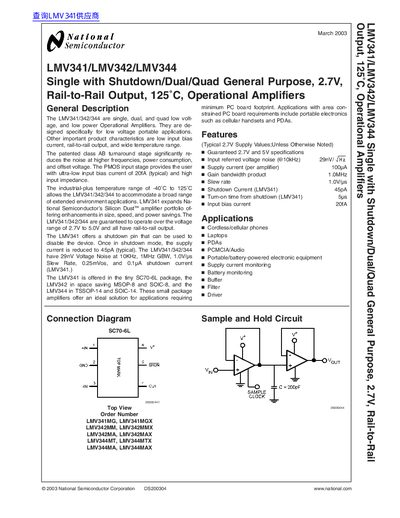

National LMV341/LMV342/LMV344 handbook
The document describes the LMV341 (single), LMV342 (dual), and LMV344 (quad) operational amplifiers designed specifically for low voltage portable applications. Key features include a guaranteed operating range of 2.7V to 5.0V, rail-to-rail output swing, ultra-low input bias current typical of 20fA, and an industrial-plus temperature range from -40°C to 125°C.
Read onlineNational Semiconductor LMV341 specifications
| Supply Voltage Range | 2.7V to 5.0V |
|---|---|
| Input Bias Current (Typical) | 20fA |
| Gain Bandwidth Product | 1.0MHz |
| Slew Rate | 1.0V/µs |
| Temperature Range | -40°C to 125°C |
| Shutdown Current (LMV341) | 45pA |
All National Semiconductor LMV341 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical input bias current?
The PMOS input stage provides an ultra-low input bias current of 20fA (typical).
Does the LMV341 have a shutdown pin?
Yes, the LMV341 offers a shutdown pin that can be used to disable the device.
What is the typical input bias current of the LMV341?
The LMV341 has an ultra‑low input bias current of 20 fA typical.
From: National LMV341/LMV342/LMV344 Operational Amplifier Datasheet
What supply voltage range do the LMV341/LMV342/LMV344 operate over?
They are guaranteed to operate from 2.7 V up to 5.5 V.
From: National LMV341/LMV342/LMV344 Operational Amplifier Datasheet
