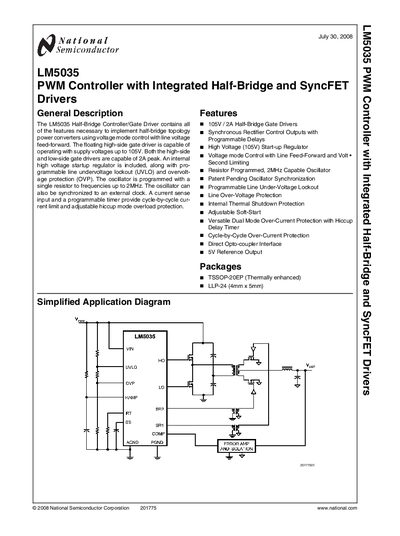

The LM5035 Half-Bridge Controller/Gate Driver contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feed-forward. The floating high-side gate driver is capable of operating with supply voltages up to 105V. Both the high-side and low-side gate drivers are capable of 2A peak. An internal high voltage startup regulator is included, along with programmable line undervoltage lockout (UVLO) and overvoltage protection (OVP). The oscillator is programmed with a single resistor to frequencies up to 2MHz. The oscillator can also be synchronized to an external clock. A current sense input and a programmable timer provide cycle-by-cycle cur- rent limit and adjustable hiccup mode overload protection.
The LM5035 is a half‑bridge controller/gate driver that supports voltage‑mode control with line feed‑forward. It provides floating high‑side and low‑side gate drivers capable of up to 105 V supply and 2 A peak current, along with programmable UVLO, OVP, and a programmable timer for cycle‑by‑cycle current limiting and hiccup mode overload protection.
The document includes ordering information, pin descriptions, electrical characteristics, thermal shutdown data, and typical performance curves. It also outlines application notes such as external resistor programming for the oscillator, soft‑start configuration, and current‑sense operation.
