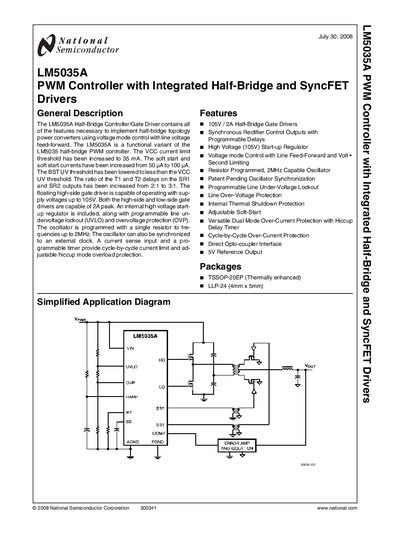

LM5035A PWM Controller with Integrated Half-Bridge and SyncFET Drivers contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feed-forward.
The LM5035A is a half‑bridge PWM controller and gate‑driver that supports voltage‑mode control with line‑feed‑forward and integrated high‑voltage start‑up regulation. It provides 105 V high‑side driver capability and 2 A peak source/sink current on both high‑side and low‑side outputs.
The document includes a general description, feature list, package options, ordering information, pin descriptions, absolute maximum ratings, electrical characteristics, thermal shutdown data, and typical performance curves. It also provides application notes such as UVLO, OVP, soft‑start, and oscillator synchronization details.
| Operating input voltage range | 13 V to 100 V (transient to 105 V) |
|---|---|
| VCC output voltage (regulated) | 7.6 V |
| High‑side / Low‑side peak driver current | 2 A peak |
| Thermal shutdown temperature | 165 °C |
| Over‑voltage protection threshold | ≈1.25 V |
The device operates from 13 V to 100 V, with transient capability up to 105 V.
Both the high‑side and low‑side drivers are capable of 2 A peak current.
