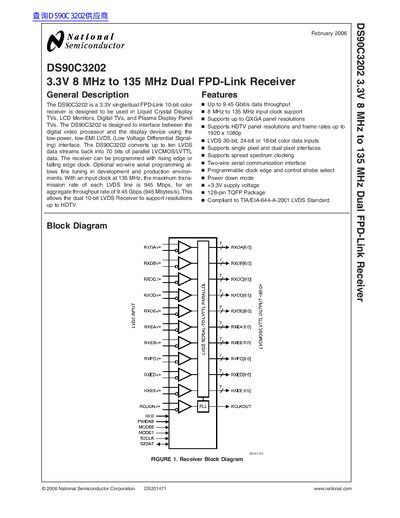

National Semiconductor DS90C3202 Datasheet
The National Semiconductor DS90C3202 is a 3.3V single/dual FPD-Link 10-bit color receiver designed for use in Liquid Crystal Display TVs, monitors, digital TVs, and plasma display panels. It interfaces between the digital video processor and the display device using a low-power, low-EMI LVDS interface.
The device converts up to ten LVDS data streams back into 70 bits of parallel LVTTL/LVCMOS data. With an input clock at 135 MHz, it supports resolutions up to HDTV (1920 x 1080p) and QXGA panel resolutions. The receiver features a two-wire serial communication interface for fine-tuning in development and production environments.
National Semiconductor DS90C3202 specifications
| Supply Voltage (Vpp) | 3.15 V to 3.6 V |
|---|---|
| Input Clock Frequency | 8 MHz to 135 MHz |
| Maximum Data Throughput | 9.45 Gbps |
| Package Type | 128-pin TQFP |
All National Semiconductor DS90C3202 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmission rate for each LVDS line when the input clock is at 135 MHz?
The maximum transmission rate of each LVDS line is 945 Mbps.
What supply voltage does the DS90C3202 require?
The device requires a +3.3V supply voltage.
What is the maximum data throughput of the DS90C3202?
The device can handle up to 9.45 Gbps (945 Mbytes/s) of aggregate data throughput.
From: National Semiconductor DS90C3202 Dual FPD-Link Receiver Datasheet
What supply voltage does the DS90C3202 require?
It operates from a 3.3 V supply.
From: National Semiconductor DS90C3202 Dual FPD-Link Receiver Datasheet
