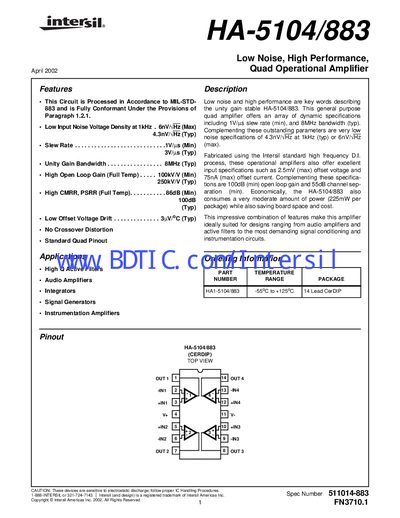

Intersil HA-5104/883 Operational Amplifier Datasheet
The HA-5104/883 quad operational amplifier is designed for audio amplifiers, active filters, signal‑conditioning and instrumentation circuits. It offers low input noise, high open‑loop gain, and moderate power dissipation in a 14‑lead CERDIP package.
The datasheet provides detailed absolute‑maximum ratings, operating conditions, DC and AC electrical performance specifications, pinout diagrams, and die characteristics, enabling designers to integrate the device into a wide range of applications.
Intersil HA-5104 specifications
| Slew Rate | 1 V/µs (min) |
|---|---|
| Unity Gain Bandwidth | 8 MHz (typ) |
| Input Noise Voltage Density | 4.3 nV/√Hz (typ) at 1 kHz |
| Offset Voltage Drift | 0.3 µV/°C (typ) |
| Power Consumption | 225 mW (typ) |
| Input Offset Voltage | 2.5 mV (max) |
Source: Intersil HA-5104/883 Operational Amplifier Datasheet
All Intersil HA-5104 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum voltage allowed between V+ and V‑?
The maximum voltage between V+ and V‑ terminals is 40 V.
What is the operating temperature range of the HA‑5104/883?
The device operates from –55 °C to +125 °C.
What is the maximum operating temperature for the HA‑5102?
The HA‑5102 can operate up to 125 °C.
From: Intersil HA-5102/HA-5104 Operational Amplifier Datasheet
What is the bandwidth of the HA‑5102/HA‑5104?
The amplifiers have an 8 MHz bandwidth (compensated).
From: Intersil HA-5102/HA-5104 Operational Amplifier Datasheet
