HA-5102/04 series operational amplifiers features low noise, high performance, 8MHz bandwidth, 3V/µs slew rate, 0.5mV offset voltage and 30nA offset current, suitable for audio amplifiers and active filters etc

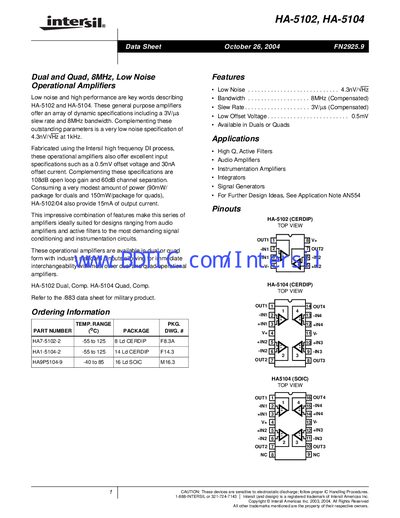

The HA-5102 (dual) and HA-5104 (quad) are general‑purpose, low‑noise operational amplifiers fabricated with Intersil's high‑frequency DI process. They are suited for audio amplifiers, active filters, instrumentation and signal‑conditioning circuits.
Key electrical characteristics include an 8 MHz bandwidth, 3 V/µs slew rate, 4.3 nV/√Hz input noise at 1 kHz, 0.5 mV offset voltage, 15 mA output current and typical supply current of 3 mA. Devices are offered in 8‑lead CERDIP, 14‑lead CERDIP and 16‑lead SOIC packages and operate from –55 °C to 125 °C (HA‑5102) or –40 °C to 85 °C (HA‑5104).
| Bandwidth | 8 MHz (Compensated) |
|---|---|
| Slew Rate | 3 V/µs (Compensated) |
| Input Noise Voltage (1 kHz) | 4.3 nV/√Hz |
| Output Current | 15 mA |
| Operating Temperature Range (HA‑5102) | -55 °C to 125 °C |
| Operating Temperature Range (HA‑5104) | -40 °C to 85 °C |
The HA‑5102 can operate up to 125 °C.
The amplifiers have an 8 MHz bandwidth (compensated).
