Key facts
- Brand
- Gigabyte
- Model
- GA-Z68XP-UD4
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-13
Start here

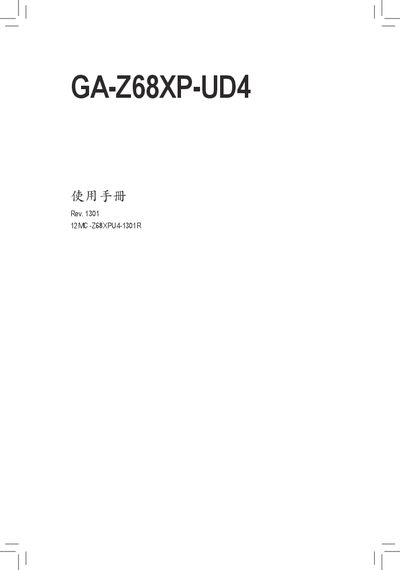

Gigabyte GA-Z68XP-UD4 Motherboard User Manual
This manual guides users through the hardware installation of the GA-Z68XP-UD4 motherboard, including CPU, memory, cooling fans, and SATA devices. It also lists the accessories supplied with the board and explains how to assemble the system safely.
Later sections cover BIOS setup, integrated peripheral configuration, power‑management options, audio and video settings, and troubleshooting tips. The document includes detailed diagrams of the board layout and instructions for updating the BIOS using Q‑Flash or @BIOS utilities. This manual is written in Chinese.
Gigabyte GA-Z68XP-UD4 specifications
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 2133/1866/1600/1333/1066 MHz |
| SATA Ports | 2 × SATA 6 Gb/s |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
All Gigabyte GA-Z68XP-UD4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I update the BIOS on the GA-Z68XP-UD4?
BIOS updates can be performed using the Q‑Flash utility or the @BIOS tool, both described in the BIOS update section of the manual.
How do I update the BIOS on the GA‑Z68XP‑UD4?
Use the Q‑Flash utility within the BIOS or the @BIOS utility from Windows to load the new BIOS file and flash the board.
