Key facts
- Brand
- Gigabyte
- Model
- GA-Z68XP-UD3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-13
Start here

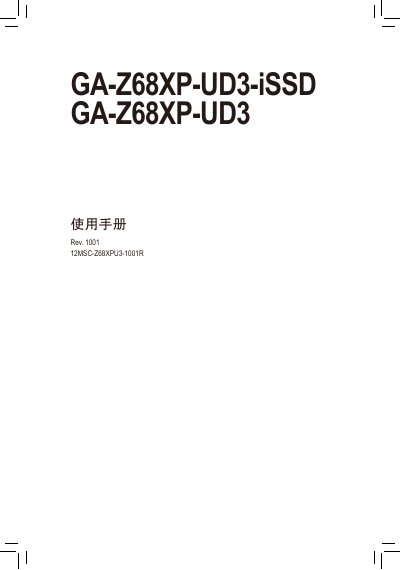

Gigabyte GA-Z68XP-UD3-iSSD Motherboard User Manual
This manual provides step‑by‑step instructions for installing and configuring the Gigabyte GA‑Z68XP‑UD3‑iSSD motherboard. It covers hardware installation, BIOS configuration, driver setup, unique features such as Xpress Recovery and Cloud OC, and includes a comprehensive troubleshooting appendix.
The document is organized into chapters on hardware installation, BIOS settings, driver installation, special functions, and appendices with SATA configuration, audio settings, and warranty information. Detailed diagrams of the board layout and connector pin‑outs are included to aid assembly and maintenance. This manual is written in Chinese.
Gigabyte GA-Z68XP-UD3 specifications
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 2133/1866/1600/1333/1066 MHz |
| USB 3.0 Ports | 2 |
All Gigabyte GA-Z68XP-UD3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the model number of this motherboard?
The model number is GA‑Z68XP‑UD3‑iSSD.
Which CPU socket does the GA‑Z68XP‑UD3‑iSSD use?
It uses an LGA1155 socket.
How many memory slots are available and what is the maximum supported memory?
The board has four DDR3 DIMM slots that together support up to 32 GB of memory.
Does the GA‑Z68XP‑UD3‑iSSD support multi‑GPU configurations?
Yes, it supports both AMD CrossFireX and NVIDIA SLI technologies.
