Key facts
- Brand
- Gigabyte
- Model
- GA-Z68XP-UD3P
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-13
Start here

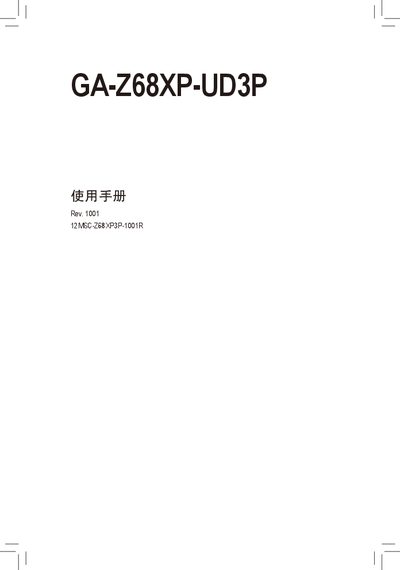

Gigabyte GA-Z68XP-UD3P Motherboard User Manual
This manual guides users through the setup and configuration of the Gigabyte GA-Z68XP-UD3P motherboard. It includes detailed steps for installing the CPU, memory, storage devices, and expansion cards, as well as instructions for connecting front‑panel connectors and jumpers.
The document also covers BIOS navigation, driver installation, Gigabyte utilities such as Xpress Recovery and EasyTune, and a troubleshooting section that addresses common issues. Contact information for global technical support is provided at the end of the manual. This manual is written in Chinese.
Gigabyte GA-Z68XP-UD3P specifications
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 2133/1866/1600/1333/1066 MHz |
| PCI Express Slots | x16, x1, x1 |
| SATA Ports | 6 Gb/s SATA3, SATA2 |
| USB Ports | 2× USB 3.0, 4× USB 2.0 |
| Audio Outputs | HD Audio, SPDIF, Surround, Center/Subwoofer |
All Gigabyte GA-Z68XP-UD3P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I update the BIOS on the GA‑Z68XP‑UD3P?
Use the Q‑Flash utility in the BIOS or the @BIOS utility from the Gigabyte support website to flash the latest BIOS version.
What is the model number of the motherboard?
The model number is GA‑Z68XP‑UD3P.
Which FCC classification does this motherboard have?
It is classified as a Class B Digital Device.
