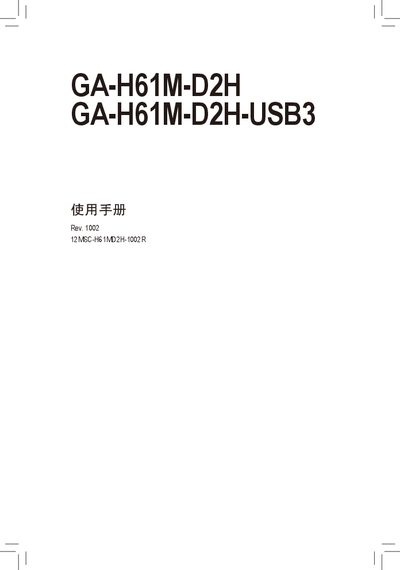

GA-H61M-D2H/GA-H61M-D2H-USB3 User Manual, introduces the hardware installation, BIOS configuration and driver installation of the main board
This manual covers hardware installation, BIOS configuration, driver installation, and detailed product specifications for the Gigabyte GA-H61M-D2H and GA-H61M-D2H-USB3 motherboards. It includes safety warnings, step‑by‑step instructions, and a parts list.
The document also provides warranty information, support contacts, and regulatory compliance declarations for the product, helping users troubleshoot and maintain their system. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported Chipset | Intel H61 |
| Memory Slots | 4 DDR3 DIMM slots, up to 16 GB |
| Memory Speed | DDR3 1333/1066/800 MHz |
| SATA Ports | 4 × SATA 3 Gb/s |
| PCI Express Slots | 1 × PCIe x16, 1 × PCIe x1 (PCIe 2.0) |
| Video Outputs | 1 × D‑Sub, 1 × DVI‑D, 1 × HDMI |
| Audio Codec | Realtek VIA HD Audio |
| Power Connectors | 24‑pin ATX main, 4‑pin ATX 12 V |
It uses an LGA1155 socket.
The board supports up to 16 GB of DDR3 memory across four DIMM slots.
The board includes one D‑Sub, one DVI‑D, and one HDMI connector.
