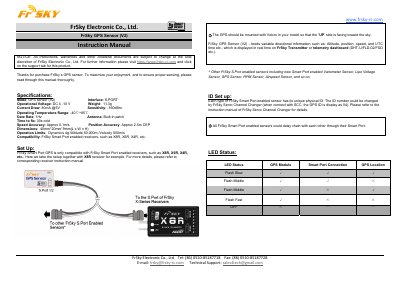

FrSky GPS Sensor (V2) Instruction Manual, introduces product features, specifications, application range, installation method, etc.
The FrSky GPS Sensor (V2) is a device designed to provide variable directional information such as altitude, position, speed, and UTC time. It displays this data in real-time on compatible FrSky Transmitters or telemetry dashboards like the DHT-U/FLD-02/FSD.
| Mode | GPS sensor (V2) |
|---|---|
| Interface | S.PORT |
| Operational Voltage | DC 4 -10 V |
| Weight | 11.3g |
| Current Draw | 80mA @5V |
| Sensitivity | -160dBm |
| Operating Temperature Range | -40 ~85℃ |
| Date Rate | 1Hz |
| Time to fix (cold) | 30s |
| Speed Accuracy | Approx 0.1m/s |
| Position Accuracy | Approx 2.5m CEP |
| Dimensions | 40mm*20mm*9mm(L x W x H) |
The device supports dynamics of 4g, an altitude limit of 50,000m, and a velocity limit of 500m/s.
It is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.
The GPS should be mounted with Velcro so that the 'UP' side is facing toward the sky.
