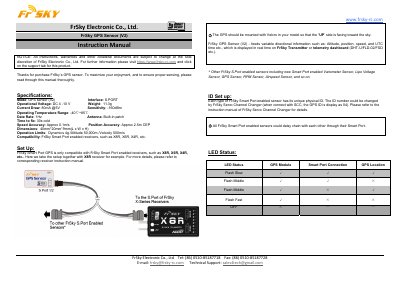

FrSky GPS Sensor (V2) Instruction Manual, introduces the function characteristics, use method, compatibility and other information of the sensor
The FrSky GPS Sensor (V2) is a device that feeds variable directional information such as altitude, position, speed, and UTC time to FrSky Transmitters or telemetry dashboards. It operates on a DC 4-10V voltage and features a built-in patch antenna with a 1Hz data rate.
| Operational Voltage | DC 4 -10 V |
|---|---|
| Current Draw | 80mA @5V |
| Operating Temperature Range | -40°C ~85°C |
| Data Rate | 1Hz |
| Position Accuracy | Approx 2.5m CEP |
| Dimensions | 40mm*20mm*9mm |
The interface is S.PORT.
It is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.
The sensor should be mounted with Velcro so that the 'UP' side is facing toward the sky.
