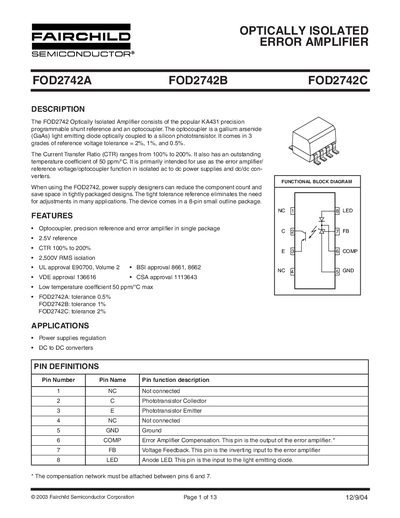

FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(2)
The FOD2742A/B/C devices combine a precision 2.5 V reference, an optocoupler and an error‑amplifier in an 8‑pin SO package. They are intended for isolated AC‑DC power supplies and DC‑DC converters, offering tight reference tolerances (0.5 %‑2 %) and a low temperature coefficient of 50 ppm/°C.
Key electrical parameters include a current transfer ratio of 100 %‑200 %, 2.5 kV rms isolation, and operating temperature range from –25 °C to +85 °C. The datasheet provides absolute maximum ratings, pin definitions, and typical performance curves for design reference.
Fairchild FOD2742A specifications
| Reference voltage | 2.5 V |
|---|---|
| Current Transfer Ratio (CTR) | 100 %‑200 % |
| Isolation rating | 2,500 V rms |
| Temperature coefficient | 50 ppm/°C |
| Storage temperature range | -40 °C to +125 °C |
| Operating temperature range | -25 °C to +85 °C |
| Collector‑Emitter breakdown voltage | 70 V |
Source: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(2)
All Fairchild FOD2742A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reference voltage of the FOD2742 devices?
Each device provides a 2.5 V precision reference.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(2)
What is the isolation capability of the FOD2742 series?
The devices are rated for 2,500 V rms isolation.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(2)
What is the isolation voltage rating of the FOD2742?
The device provides 2,500 V RMS isolation.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(1)
What reference voltage does the FOD2742 deliver?
It includes a 2.5 V precision reference.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(1)
What is the reference voltage of the FOD2742 devices?
The reference voltage is 2.5 V.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(1)(1)
What isolation rating does the FOD2742 provide?
It provides 2500 Vrms isolation.
From: FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C Manual(1)(1)
