Start here

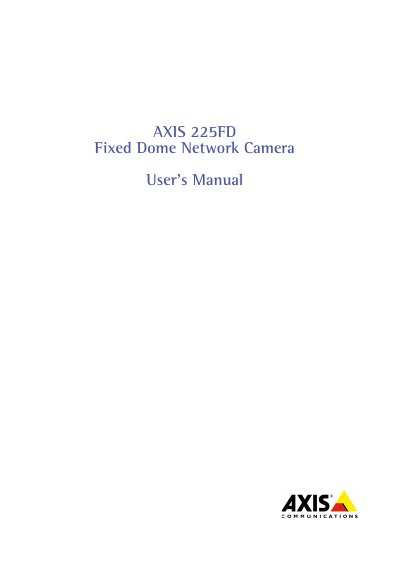

Axis 225FD Fixed Dome Network Camera User Manual
This manual is intended for administrators and users of the Axis 225FD Fixed Dome Network Camera. It covers installation, network configuration, video streaming options, and security features for professional surveillance applications.
The document includes detailed chapters on accessing the camera, setting passwords, focusing and zooming, video stream types (Motion JPEG and MPEG‑4), network settings, event configuration, and technical specifications such as sensor type, lens, illumination, and PoE power requirements.
AXIS 225FD specifications
| Adapter size | 1.5 inch to 22 mm |
|---|---|
| Bolts | M5 × 20 |
| Washers | 5 mm |
All AXIS 225FD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is included in the AXIS 225FD pendent kit?
The kit contains a cast aluminum pendent adapter, a gasket, a 1.5 inch‑to‑22 mm adapter, M5 × 20 bolts, Teflon sealing tape, and 5 mm washers.
How do I seal the pendent attachment?
Apply the supplied Teflon sealing tape as shown in the illustration.
How do I set the root password for the Axis 225FD camera?
When accessing the camera for the first time, the ‘Configure Root Password’ dialog appears; enter and confirm a password, then click OK.
What is the minimum illumination required for color video?
The camera needs 1 lux at F1.4 for color mode.
What battery does the Axis 225FD use?
It uses a 3.0 V CR2032 Lithium battery for its internal real‑time clock.
How many frames per second can the camera capture at VGA resolution?
The camera can capture up to 30 frames per second at VGA (640×480) resolution.
