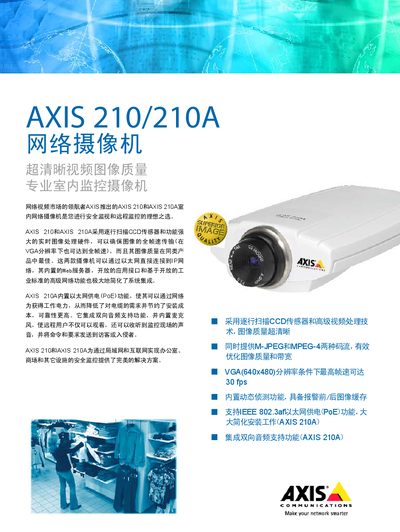

Axis 210/210A Network Camera User Manual
The Axis 210 and 210A are indoor network cameras that use a progressive‑scan CCD sensor and powerful real‑time image processing to deliver high‑quality video. Both models connect directly to an IP network via Ethernet and include a built‑in web server, open APIs, and support for standard network protocols.
The 210A adds Power over Ethernet (PoE) and two‑way audio with a built‑in microphone, reducing cabling needs. The manual covers hardware specifications, power options, mounting, configuration, and software integration, as well as troubleshooting and maintenance procedures. This manual is written in Chinese.
AXIS AXIS 210 specifications
| Image Sensor | Progressive scan CCD sensor |
|---|---|
| Lens | 4.0 mm focal length, F2.0 fixed aperture |
| Minimum Illumination | 3.0 lux at F2.0 |
| Maximum Frame Rate (VGA 640×480) | 30 fps |
| Power Options | 7‑20 VDC, max 5 W or PoE (IEEE 802.3af) |
| Dimensions (HxWxD) | 38 × 88 × 146 mm |
| Memory (RAM) | 16 MB (210) / 32 MB (210A) |
| Video Compression | M‑JPEG and MPEG‑4 |
| Audio | Built‑in microphone with external mic support |
All AXIS AXIS 210 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum frame rate at VGA resolution?
The camera can achieve up to 30 fps at VGA (640×480) resolution.
How many users can access the camera simultaneously?
The device supports up to 20 concurrent users.
What video compression formats does the Axis 210 support?
The camera supports Motion JPEG and MPEG‑4 video compression.
What are the power requirements for the Axis 210?
It requires a 9 VDC power supply delivering up to 9 W and includes an external power adapter.
