Key facts
- Brand
- AXIS
- Model
- P1346
- Industry
- Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-05-11
Start here

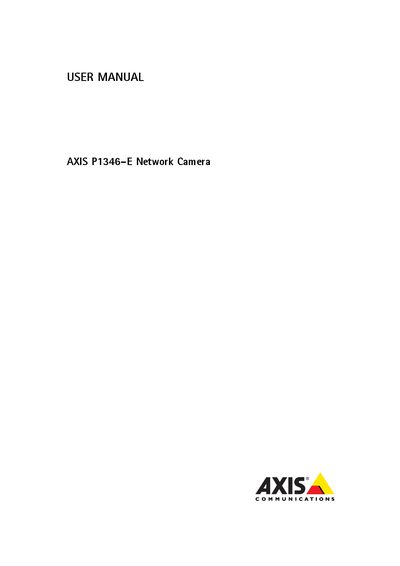

Axis P1346-E Network Camera User Manual
This manual covers installation, hardware overview, network configuration, video and audio streaming, and advanced features such as PTZ and event handling for the Axis P1346‑E network camera. It also includes safety information, regulatory compliance, and support resources.
The guide explains how to connect the camera, use the control button, configure I/O ports, manage storage with an SD card, and set up user accounts and passwords. Detailed sections describe media streams, recording options, system options, and troubleshooting procedures.
AXIS P1346 specifications
| Processor and Memory | 256 MB RAM, 128 MB Flash |
|---|---|
| Power Supply | 8‑20 V DC or Power over Ethernet (PoE) IEEE 802.3af, max 9.6 W |
| Dimensions | 46 × 78 × 207 mm (1.8 × 3.1 × 8.2 in) |
| Weight | 0.6 kg (1.3 lb) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20 %–80 % RH (non‑condensing) |
All AXIS P1346 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do you reset the camera to factory default settings?
Press and hold the control button for about 3 seconds until the Status LED flashes green, then follow the reset procedure described on page 50.
Can the camera be powered by Power over Ethernet?
Yes, the camera supports PoE according to IEEE 802.3af, providing up to 9.6 W of power.
What type of battery does the Axis P13 series use?
The cameras use a 3.0 V CR2032 lithium battery to power the internal real‑time clock.
How can I assign an IP address to the camera?
You can let a DHCP server assign an address automatically, or set a static address using the AXIS IP Utility for single cameras or AXIS Camera Management for multiple cameras.
