Key facts
- Brand
- AXIS
- Model
- 211W
- Documents
- 3
- Languages
- EN
- Last added
- 2012-05-11
Start here

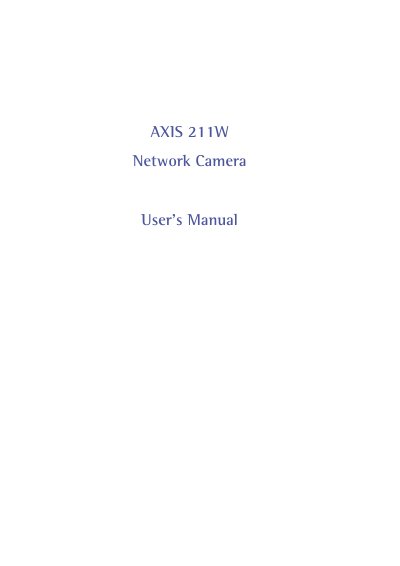

Axis 211W Network Camera User Manual
User Manual 52 pages · 2.5 MB · EN
This manual covers the Axis 211W professional wireless network camera, describing its hardware features, wireless capabilities, and two‑way audio support. It is intended for administrators and end users who need to install, configure, and manage the camera on a LAN or via the Internet.
Key sections include installation and network setup, video and audio configuration, security settings, advanced camera options, technical specifications, and troubleshooting. The document also provides safety, regulatory, and maintenance information.
AXIS 211W specifications
| Image sensor | 1/4" Micron Progressive Scan RGB VGA CMOS |
|---|---|
| Lens | F1.0 varifocal 3.0‑8.0 mm, CS mount |
| Minimum illumination | 1 lux, F1.0 |
| Video compression | Motion JPEG and MPEG‑4 Part 2 (ISO/IEC 14496‑2) |
| Frame rate | Up to 30 fps in all resolutions |
| Power options | 7‑20 V DC max 5 W or PoE IEEE 802.3af Class 2 |
| Wireless interface | IEEE 802.11g 6‑54 Mbps, IEEE 802.11b 1‑11 Mbps |
| Audio compression | G.711 PCM 64 kbit/s, G.726 ADPCM 32/24 kbit/s, AAC LC 8‑32 kbit/s |
All AXIS 211W documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Installation Guide 1
Mounting, wiring and first power-up. Read it before the hardware goes in.
Other documents 1
