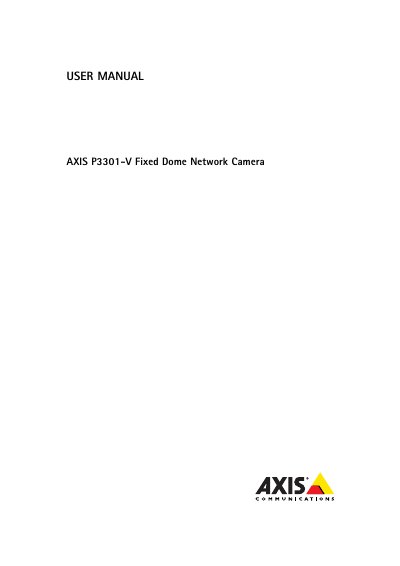

Axis P3301-V Fixed Dome Network Camera User Manual
This manual is intended for administrators and users of the Axis P3301‑V fixed dome network camera. It covers hardware overview, network connection, power over Ethernet, I/O terminals, LED indicators, and how to access the camera via a web browser or the Axis IP Utility.
The document also details video and audio streaming options, security features such as password protection and HTTPS, and technical specifications including sensor type, lens, power consumption, dimensions, and environmental ratings. Troubleshooting, firmware upgrades, and maintenance procedures are included at the end of the guide.
AXIS P3301-V specifications
| Image sensor | Progressive scan RGB CMOS 1/4" |
|---|---|
| Lens | Varifocal 2.8–10 mm, F1.3 |
| Horizontal angle of view | 72° – 23° |
| Minimum illumination | 1 lux (F1.3) |
| Shutter time | 1/20000 s to 1/4 s |
| Power consumption | 4.9 – 5.1 V DC, max 4.7 W |
| Dimensions (HxWxD) | 94 mm × 144 mm × 132 mm |
| Weight | 0.6 kg (1.3 lb.) |
| Network connector | RJ‑45 Ethernet with PoE (IEEE 802.3af Class 2) |
All AXIS P3301-V documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of network connector does the P3301‑V use?
It uses an RJ‑45 Ethernet connector that supports Power over Ethernet (PoE).
Can the camera be powered without a PoE switch?
Yes, the camera has a mini DC power connector that can be used as an alternative to PoE.
What power options does the Axis P3301 camera support?
It can be powered via Ethernet (IEEE 802.3af PoE) with a 49‑5.1 VDC supply delivering up to 4 W.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera Manual
Does the Axis P3301 support ONVIF?
Yes, the Axis P3301 and P3301‑V support the ONVIF specification for interoperability.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera Manual
What video compression formats does the camera support?
The camera supports H.264 and Motion JPEG video compression.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera User Manual
Does the camera work with PoE?
Yes, it can be powered via IEEE 802.3af Power over Ethernet (Class 2).
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera User Manual
