Start here

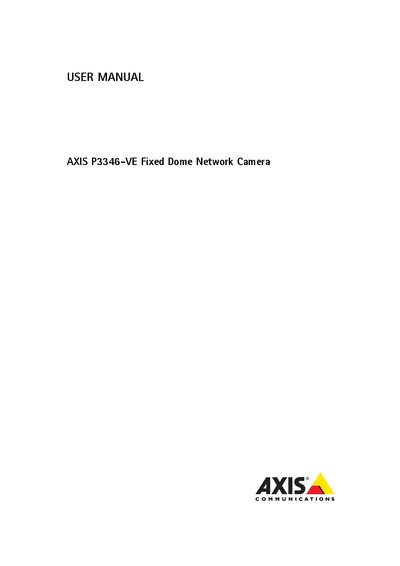

Axis P3346-VE Fixed Dome Network Camera User Manual
This user manual covers everything you need to set up and use the Axis P3346-VE fixed dome network camera, including hardware overview, network connection, LED indicators, I/O ports, video and audio settings, privacy mask, PTZ functions, and detector configuration.
It also explains system options, firmware updates, troubleshooting steps, and technical specifications such as dimensions, power requirements, environmental limits, and regulatory approvals.
AXIS P3346-VE specifications
| Storage | SD/SDHC memory card slot (card not included) |
|---|---|
| Operating Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Humidity | 15‑85 % RH (non‑condensing) |
| Dimensions | 117 mm × 178 mm × 178 mm (7.0" × 4.6" × 4.6") |
| Weight | 1.7 kg (3.7 lb) |
| Power over Ethernet (PoE) | Supported via RJ‑45 connector |
| 3.3 V DC Power Pin Max Load | 50 mA |
All AXIS P3346-VE documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the camera to factory default settings?
Press and hold the control button for about 1 second until the Status LED flashes green.
How can I configure the Status LED to stay unlit during normal operation?
Go to Setup > System Options > Ports & Devices > LED and set the LED to unlit.
What type of battery does the camera use?
The camera uses a 3.0 V CR2032 Lithium battery for its internal real‑time clock.
From: Axis P3343-VE, P3344-VE, P3346-VE, P3367-VE Network Camera Installation Guide
Can the camera be installed within 3 meters of a railway track?
No, the P3343-VE and P3344-VE must not be installed within 3 meters of the centerline of the nearest track.
From: Axis P3343-VE, P3344-VE, P3346-VE, P3367-VE Network Camera Installation Guide
