Key facts
- Brand
- AXIS
- Model
- P3301
- Industry
- Electronics
- Documents
- 6
- Languages
- EN · ZH
- Last added
- 2012-05-11
Start here

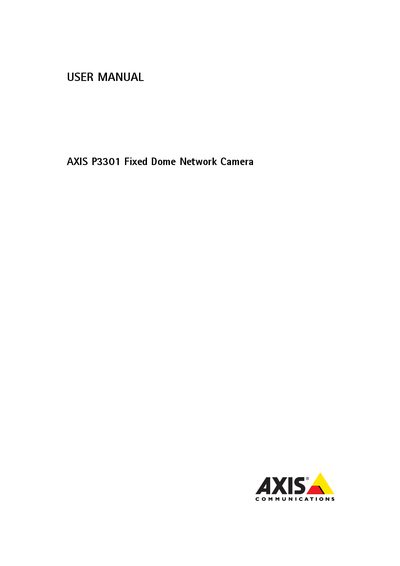

Axis P3301 Fixed Dome Network Camera User Manual
This manual explains how to install and configure the Axis P3301 Fixed Dome Network Camera. It describes the hardware layout, including the RJ‑45 PoE network connector, power connector, LEDs, audio I/O, and the I/O terminal connector with digital input and output specifications. The document also covers LED status indications and hardware safety notes such as using a shielded STP network cable.
The guide details accessing the camera via a web browser, setting the root password (optionally over HTTPS with a self‑signed certificate), using the control button for DNS service, and resetting the device to factory defaults. Additional sections cover network settings, firmware upgrades, troubleshooting, and support resources.
AXIS P3301 specifications
| Dimensions | 94 mm x 144 mm x 132 mm (HxWxD) |
|---|---|
| Weight | 0.4 kg (0.9 lb.) |
| Network connector | RJ‑45 Ethernet, supports Power over Ethernet (PoE) |
| Power connector | Mini DC connector |
All AXIS P3301 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of network cable should be used to protect the camera from power surges?
A shielded network cable (STP) must be used between the camera and the network switch.
What is the total weight of the camera plus the ceiling mount?
The combined weight is 0.82 kg (1.8 lb).
From: Axis 216FD and P3301 Network Camera Ceiling Mount Installation Guide
What ceiling thickness can the mount support?
The mount can be installed in ceilings 9 mm to 60 mm thick (0.35‑2.4 in).
From: Axis 216FD and P3301 Network Camera Ceiling Mount Installation Guide
What power options does the Axis P3301 camera support?
It can be powered via Ethernet (IEEE 802.3af PoE) with a 49‑5.1 VDC supply delivering up to 4 W.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera Manual
Does the Axis P3301 support ONVIF?
Yes, the Axis P3301 and P3301‑V support the ONVIF specification for interoperability.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera Manual
What video compression formats does the camera support?
The camera supports H.264 and Motion JPEG video compression.
From: Axis P3301 / P3301-V Fixed Hemisphere Network Camera User Manual
