Key facts
- Brand
- AXIS
- Model
- DBH24K
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-01
Start here

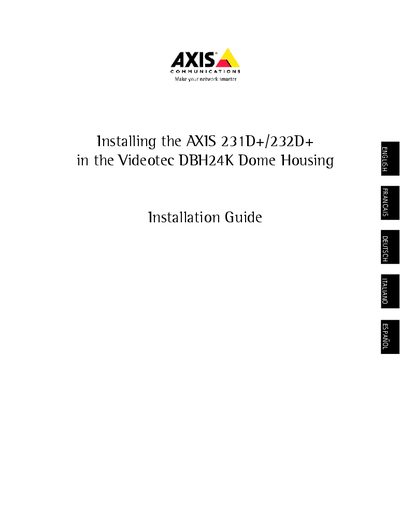

Axis 231D+/232D+ Network Dome Camera Installation Guide for Videotec DBH24K Dome Housing
The document provides step‑by‑step instructions for installing an Axis 231D+/232D+ network dome camera in a Videotec DBH24K dome housing. It lists required items such as the dome housing, wall/ceiling mount, heater‑and‑fan bracket, camera bracket, power supply (PS‑24 recommended) and standard network cable.
Installation steps cover assembling the outdoor housing, routing power and network cables, mounting the camera, fitting the dome glass and securing all fasteners. Safety notes remind users to disconnect power and to use qualified electricians for high‑voltage work.
AXIS DBH24K specifications
| Operating voltage | 230 V AC |
|---|---|
| Recommended power supply | PS‑24 |
| Network cable | Standard Ethernet cable (not supplied) |
Source: Axis 231D+/232D+ Network Dome Camera Installation Guide for Videotec DBH24K Dome Housing
All AXIS DBH24K documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What power supply is recommended for the installation?
A PS‑24 power supply is recommended.
From: Axis 231D+/232D+ Network Dome Camera Installation Guide for Videotec DBH24K Dome Housing
What safety precaution must be taken before working on the housing?
Ensure the power is disconnected and have a certified electrician perform the work.
From: Axis 231D+/232D+ Network Dome Camera Installation Guide for Videotec DBH24K Dome Housing
What voltage does the AXIS 215 PTZ operate on?
The camera operates on 230V AC.
From: Axis 215 PTZ Installation Guide for Videotec DBH24K Dome Housing
What hardware is required to install the AXIS 215 PTZ in the Videotec DBH24K housing?
You need the Videotec DBH24K dome housing, VT Dome Adapter, bracket with heater and fan, adapter plate, double‑sided adhesive tape, 2 M5×8 screws, 4 M4×6 screws, the AXIS 215 PTZ camera, a power adapter, a mains power cable, a network cable, and suitable conduits and plugs.
From: Axis 215 PTZ Installation Guide for Videotec DBH24K Dome Housing
