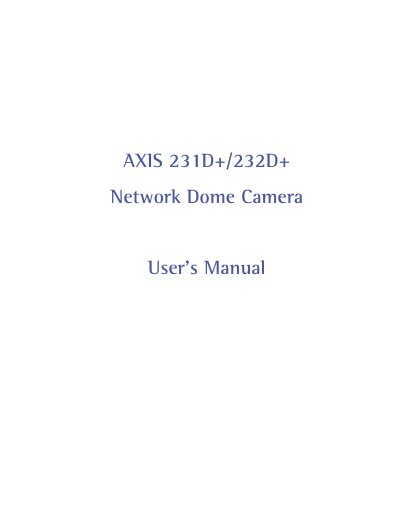

Axis 231D+/232D+ Network Dome Camera User Manual
This manual guides administrators and users through installing, configuring, and operating the Axis 231D+/232D+ network dome camera. It covers hardware description, network connection, PTZ controls, video streaming options, and security settings.
Additional sections detail battery replacement, root password setup, firmware updates, and troubleshooting, along with full technical specifications and compliance information.
Axis 231D+/232D+ specifications
| Image sensor | 1/4” Sony EXview HAD CCD |
|---|---|
| Lens aperture | F1.4‑3.0 |
| Horizontal zoom | 18x optical, 12x digital |
| Minimum illumination (color) | 0.3 lux at 30 IRE |
| Minimum illumination (B/W) | 0.005 lux at 30 IRE (AXIS 232D+ only) |
| Pan range | 360° endless |
| Tilt range | 0°‑90° |
| Video compression | Motion JPEG and MPEG‑4 Part 2 |
All Axis 231D+/232D+ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video resolutions does the AXIS 231D+/232D+ support?
The camera supports up to 4CIF (704×576 PAL or 704×480 NTSC) and down to QCIF (176×144 PAL or 176×120 NTSC) resolutions.
What is the minimum illumination required for color video?
The camera can capture color images down to 0.3 lux at 30 IRE.
How many PTZ preset points can be stored?
Up to 50 preset points can be configured.
What video compression formats does the camera support?
The camera supports Motion JPEG and MPEG‑4 Part 2 compression.
How many preset positions are available for PTZ control?
The camera provides 100 preset positions.
