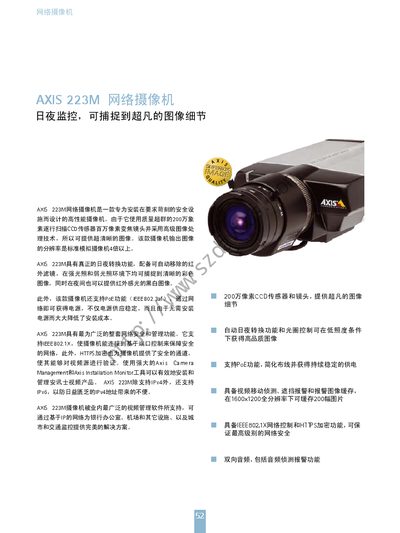

Axis 223M Network Camera User Manual
The Axis 223M is a high‑performance network camera designed for demanding security installations. It features a 2‑megapixel progressive‑scan RGB CCD sensor, a Computar 4× zoom lens, and advanced image‑processing technology that delivers clear color images in daylight and infrared black‑and‑white images at night.
The manual covers power options (7‑24 VDC or PoE IEEE 802.3af), network security (IEEE 802.1X, HTTPS, IPv4/IPv6), video compression (M‑JPEG, MPEG‑4), audio support, and detailed configuration via the Axis Camera Management tools. Physical dimensions, mounting options, and environmental specifications are also included. This manual is written in Chinese.
AXIS 223M specifications
| Image sensor | Sony Wfine progressive‑scan RGB CCD |
|---|---|
| Resolution | 2 MP (200万像素) |
| Lens | Computar H62z0414FC MP, 4× zoom, 40.8 mm focal length |
| Power input | 7‑24 VDC max 6 W, 10‑24 VAC max 8 VA (PoE IEEE 802.3af) |
| Minimum illumination (color) | 1.5 lux |
| Minimum illumination (black‑white) | 0.2 lux |
| Video compression | M‑JPEG; MPEG‑4 Part 2 (ASP, SP) |
| Maximum resolution / frame rate | 1600×1200 @ 9 fps, 640×480 @ 9 fps, 640×360 @ 12 fps, 640×120 @ 12 fps |
| Dimensions | 49 × 88 × 200 mm (1.9 × 3.5 × 7.9 in) |
