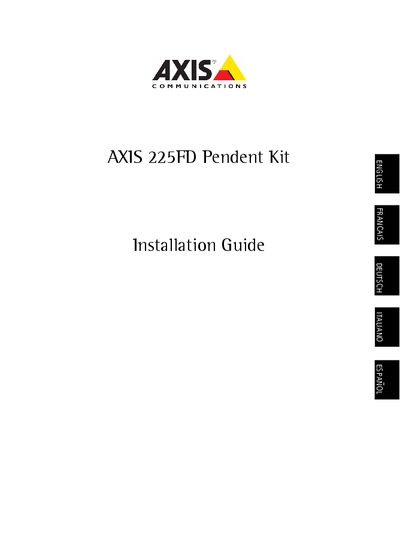

Axis 225FD Pendent Kit Installation Guide

About this manual

This guide provides step‑by‑step instructions for installing the pendent kit on an Axis 225FD fixed dome network camera. It includes preparation, mounting the wall bracket, sealing the attachment, routing cables, and securing the camera to the adapter.

The document lists the kit contents, shows how to use Teflon sealing tape, and references the main AXIS 225FD Installation Guide for additional camera installation details.

What's inside

• Package contents
• Mounting the wall bracket
• Sealing the pendent attachment
• Routing cables through the cable gland
• Securing the camera to the pendent adapter
• Reference to AXIS 225FD Installation Guide

Specifications

Frequently asked questions

What is included in the AXIS 225FD pendent kit?

The kit contains a cast aluminum pendent adapter, a gasket, a 1.5 inch‑to‑22 mm adapter, M5 × 20 bolts, Teflon sealing tape, and 5 mm washers.

How do I seal the pendent attachment?

Apply the supplied Teflon sealing tape as shown in the illustration.

Where can I find the camera’s serial number?

The serial number (S/N) is located on the product label on the base of the unit casing.
