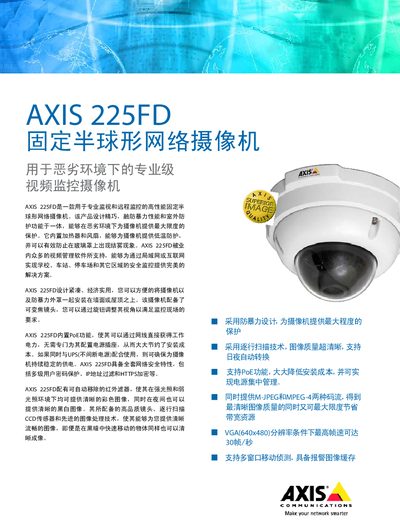

The AXIS 225FD is a high-performance fixed dome network camera designed for professional surveillance and remote monitoring. It features anti-violence design for maximum protection and supports progressive scan technology and day/night auto-switch. The camera supports PoE functionality, reducing installation costs and enabling centralized power management. It offers both M-JPEG and MPEG-4 streams for optimal image quality and bandwidth efficiency. The camera has a maximum frame rate of 30 fps at VGA resolution and supports multi-window motion detection with alarm image buffering.
The Axis 225FD is a fixed‑dome network camera designed for harsh outdoor environments. It features a built‑in heater and fan for low‑temperature protection, an automatic infrared filter, and a varifocal 28‑58 mm lens that delivers clear color images by day and black‑white images at night.
This manual covers the camera’s technical specifications, installation guidelines, PoE power options, network security features, video stream settings, and alarm/event management, helping users set up and operate the device efficiently. This manual is written in Chinese.
| Operating temperature (heater on) | -20 °C to -50 °C |
|---|---|
| Operating temperature (heater off) | 0 °C to -50 °C |
| Image sensor | 1/4" Sony RGB CCD |
| Lens | Varifocal 28‑58 mm |
| Operating humidity | 20‑80 % RH |
| Minimum illumination (color mode) | 1 lux at F1 |
| Supported video streams | M‑JPEG, MPEG‑4 |
| Maximum frame rate (VGA 640×480) | 30 fps |
| Power over Ethernet | IEEE 802.3af PoE |
| Power consumption | up to 20 W (12 V DC) |
| Network interfaces | Ethernet 10BaseT/100BaseTX, RJ‑45 |
| Alarm inputs/outputs | 2 alarm inputs, 1 alarm output |
Yes, the camera has built‑in PoE and can be powered directly through an Ethernet cable.
The camera can achieve up to 30 frames per second at VGA (640×480) resolution.
It supports both M‑JPEG and MPEG‑4 video streams.
