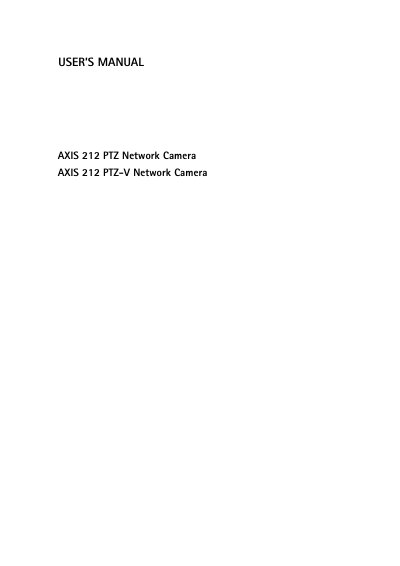

Axis 212 PTZ Network Camera User Manual
The Axis 212 PTZ and 212 PTZ‑V are indoor network cameras with a 3‑Megapixel progressive‑scan CMOS sensor, 140° pan and 105° tilt, and built‑in Power over Ethernet. They support simultaneous Motion JPEG and MPEG‑4 streams, two‑way audio, and a tamper‑proof mounting system.
This manual covers installation, network configuration, password setup, camera access via browsers, PTZ control, focus adjustment, LED indicators, event and alarm management, maintenance, troubleshooting, and detailed technical specifications.
AXIS 212 PTZ specifications
| Image sensor | 3.1 Megapixel ½" Micron progressive scan CMOS |
|---|---|
| Lens | Fujinon, F1.8, fixed iris, 2.7 mm focal length |
| Zoom | 3× optical, 0.1 s from wide to tele |
| Minimum illumination | 10 Lux (wide) / 20 Lux (tele) |
| Pan range | ± 70° instant pan |
| Tilt range | ± 52° instant tilt |
| Video compression | Motion JPEG and MPEG‑4 Part 2 (ASP, SP) |
| Power | Power over Ethernet (IEEE 802.3af) Class 1, max 3.84 W |
| Dimensions | 78 × 144 × 132 mm |
All AXIS 212 PTZ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of battery does the Axis 212 PTZ/-V use?
It uses a 3.0 V CR2032 lithium battery for its internal real‑time clock.
Can the Axis 212 PTZ/-V be installed outdoors?
No, the casing is not approved for outdoor use; it must be installed indoors.
How do I reset the camera to factory default settings?
Press the control button on the camera to restore factory default settings.
What is the default administrator username?
The default administrator username is root and it cannot be deleted.
