Key facts
- Brand
- AXIS
- Model
- P3343
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-11
Start here

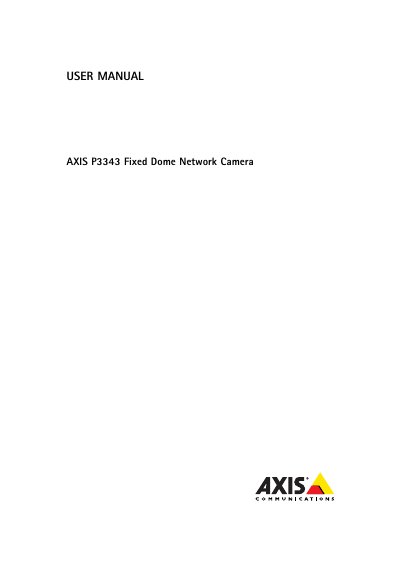

Axis P3343 Fixed Dome Network Camera User Manual
This manual covers hardware overview, network connection, audio I/O, and the I/O connector for external devices. It also explains how to access the camera via a web browser, configure streaming, and manage recordings.
Additional sections describe LED indicators, PTZ presets, guard tours, advanced settings, and troubleshooting steps such as firmware upgrades and factory reset procedures.
AXIS P3343 specifications
| Power | Power over Ethernet IEEE 802.3.af Class 2 |
|---|---|
| Dimensions | 96 mm x 148 mm x 148 mm |
| Weight | 0.5 kg (1.0 lb) |
| Processor | ARTPEC-3 |
| Memory | 128 MB RAM, 128 MB Flash |
| Storage | SD/SDHC memory card slot (card not included) |
| Operating temperature | 0 °C to 50 °C |
| Audio input | 3.5 mm jack for mic in (max 80 mVpp) |
| Network connector | RJ‑45 Ethernet, PoE supported |
All AXIS P3343 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I set the root password for the camera?
Open the Configure Root Password dialog on first access, click Create self‑signed certificate, then enter and confirm the new password.
What type of network cable should be used with the camera?
A shielded network cable (STP) must be used between the camera and the network switch to protect against power surges.
