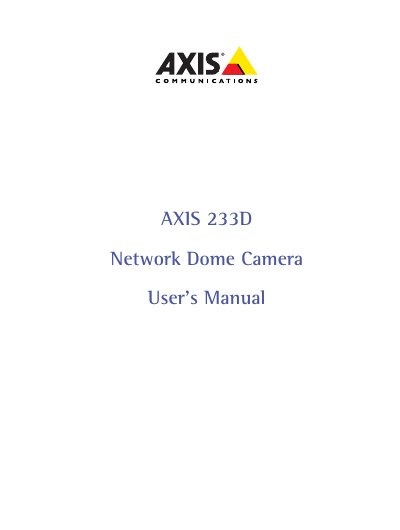

Axis AXIS 233D Network Dome Camera User Manual
The AXIS 233D is a high‑performance network dome camera designed for professional surveillance with features such as 35× optical zoom, wide dynamic range, and two‑way audio. This manual helps administrators and users install, configure, and operate the camera on a network.
It covers product overview, hardware connections, network setup, video and audio settings, PTZ control, event configuration, maintenance, and technical specifications. Safety notices, regulatory compliance, and troubleshooting guidance are also included.
AXIS 233D specifications
| Optical Zoom | 35x |
|---|---|
| Image Sensor | 1/4" ExView HAD Progressive Scan CCD |
| Focus Range | 100 mm (wide) to infinity |
| Tilt Range | 180° continuous |
| Video Compression | Motion‑JPEG, MPEG‑4 Part 2 |
| Maximum Resolution | 704×480 (NTSC) / 704×576 (PAL) |
| Frame Rate | Up to 30 fps (NTSC) / 25 fps (PAL) |
| Power Supply (indoor) | 18‑30 VAC, Max 25 VA |
| Weight | 2.5 kg |
All AXIS 233D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of network cable is required?
Shielded (STP) Ethernet cables should be used to meet EMC standards.
How many simultaneous viewers can the camera support?
The camera can support up to 20 simultaneous viewers.
What mounting options are available for the Axis 233D camera?
The camera can be installed using a hard‑ceiling mount with recessed screws or a drop‑ceiling mount with M3 screws, each with its own bracket and decorative ring.
How do I assign an IP address to the camera?
After completing the hardware installation, assign an IP address as described on page 10 of the guide.
